AD4004BCPZ-RL7 - Analog Devices

Description: 16-Bit, 2 MSPS/1 MSPS/500 kSPS, Precision, Pseudo Differential, SAR ADCs

Download AD4004BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

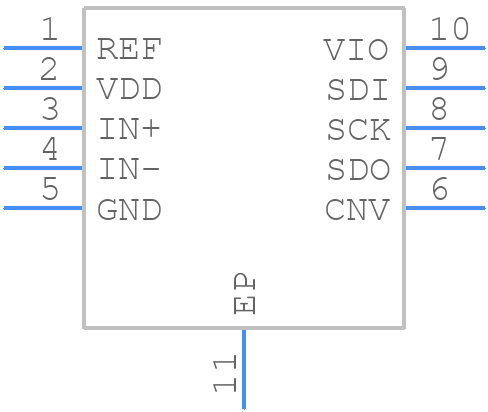

Symbol
AD4004BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4004BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Lead Frame Chip Scale Package [LFCSP]_11
click to zoom
3D Models
AD4004BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Lead Frame Chip Scale Package [LFCSP]_11
click to zoom

AD4004BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4004BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD4004BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4004BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the datasheet.
  • To ensure the accuracy of the internal voltage reference, it's essential to decouple the VREF pin with a 10uF capacitor to GND, and to keep the VREF pin away from noise sources. Additionally, the VREF pin should not be loaded with more than 1mA of current, and the device should be operated within the recommended temperature range.
  • The maximum sampling rate of the AD4004BCPZ-RL7 is 1.5 MSPS, but this can be limited by the system's noise floor, the quality of the clock signal, and the analog input signal's bandwidth. It's recommended to consult the datasheet and application notes for more information on achieving the highest possible sampling rate.
  • The AD4004BCPZ-RL7's POR and BOR functions can be handled by adding an external reset circuit that holds the device in reset until the power supply has stabilized. This can be achieved using a voltage supervisor IC or a simple RC circuit. It's also recommended to consult the datasheet and application notes for more information on implementing a robust reset circuit.
  • The AD4004BCPZ-RL7 requires a high-quality clock signal with low jitter and noise. A clock signal with a frequency of 10MHz to 50MHz is recommended, and it should be generated using a stable clock source such as a crystal oscillator or a high-quality clock generator. The clock signal should also be decoupled with a 10uF capacitor to GND.
