AD4010BCPZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC 18-Bit, 2 MSPS/1 MSPS/500 kSPS, Precision, Pseudo Differential, SAR ADCs

Download AD4010BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

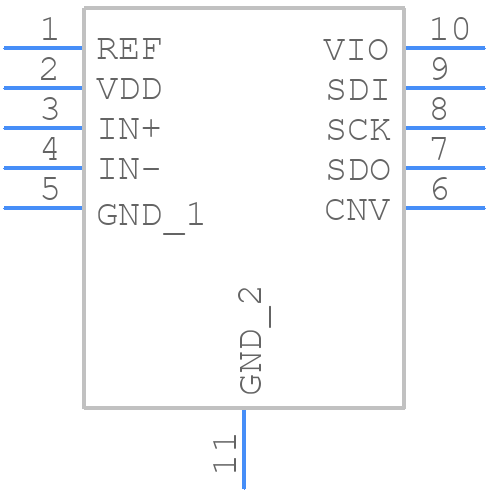

AD4010BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4010BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9
click to zoom
3D Models
AD4010BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9
click to zoom

AD4010BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4010BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    320 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    12.2%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD4010BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4010 involves keeping analog and digital traces separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate temperature measurement, calibrate the AD4010 using a thermocouple simulator or a precision temperature source. Also, ensure good thermal contact between the thermocouple and the AD4010, and minimize thermal gradients.
  • The maximum cable length for the AD4010's thermocouple input depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate measurements.
  • Yes, the AD4010 can be used with non-standard thermocouple types, but it may require custom calibration and linearization. Consult the datasheet and application notes for guidance on using non-standard thermocouples.
  • To minimize EMI, use a shielded cable for the thermocouple input, keep the AD4010 away from high-frequency sources, and use a low-pass filter on the analog output. Also, ensure good grounding and shielding of the PCB.
