AD4115BCPZ-RL7 - Analog Devices

Description: 16-Channel Single ADC Delta-Sigma 125ksps 24-bit Serial 40-Pin LFCSP EP T/R

Download AD4115BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

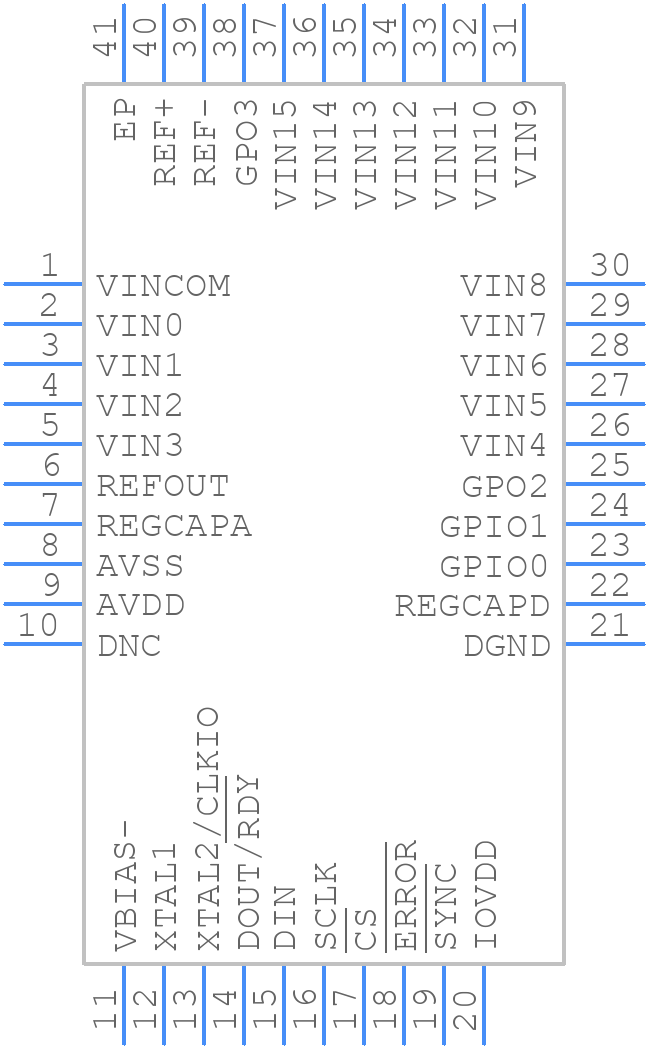

Symbol
AD4115BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4115BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - cp-40-15-ren1
click to zoom
3D Models
AD4115BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - cp-40-15-ren1
click to zoom

AD4115BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4115BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    20 V

  • Analog Input Voltage-Min:

    -20 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    11.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD4115BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4115BCPZ-RL7 involves separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to reduce noise and crosstalk.
  • The AD4115BCPZ-RL7 has an internal 2.5V voltage reference that can be enabled or disabled using the REFSEL pin. To configure the internal reference, connect the REFSEL pin to VCC or GND accordingly, and ensure that the reference voltage is stable before taking conversions.
  • The AD4115BCPZ-RL7 has a maximum sampling rate of 1.5 MSPS. As the sampling rate increases, the device's power consumption also increases. To minimize power consumption, it's recommended to use the lowest sampling rate required for the application.
  • The AD4115BCPZ-RL7 outputs 16-bit digital data in a binary two's complement format. The data can be handled using a microcontroller or FPGA, and it's recommended to use a SPI or I2C interface to communicate with the device.
  • The AD4115BCPZ-RL7 operates over a temperature range of -40°C to 125°C. The device's accuracy and reliability may be affected by extreme temperatures, so it's recommended to operate the device within the specified temperature range and ensure proper thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4115BCPZ-RL7 Overview

Use the download button to access the AD4115BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD411, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
