AD4115BCPZ - Analog Devices

Description: Analog to Digital Converters - ADC 125kSPS 16 Channel SD ADC with +/-10V In

Download AD4115BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

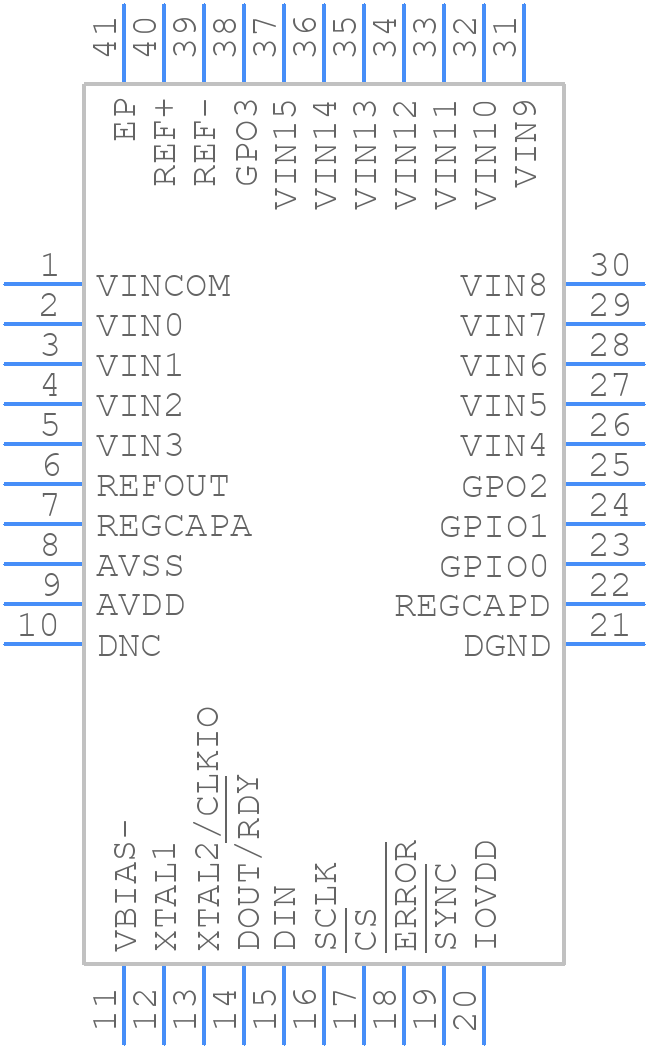

AD4115BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4115BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-15
click to zoom
3D Models
AD4115BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-15
click to zoom

AD4115BCPZ Details

  • Manufacturer Part Number:

    AD4115BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-07-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    20 V

  • Analog Input Voltage-Min:

    -20 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    11.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD4115BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4115BCPZ involves separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from digital signals. Additionally, using a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane can help to minimize noise and ensure optimal performance.
  • To properly calibrate the AD4115BCPZ, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the specified range.
  • The AD4115BCPZ is specified to operate from -40°C to 125°C, but its performance may degrade at higher temperatures. At high temperatures, the device's offset voltage and gain error may increase, affecting its accuracy. It's essential to consider the temperature range of the application and to ensure that the device is properly heat-sunk to maintain a stable temperature.
  • The AD4115BCPZ can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. The device's digital interface is compatible with 1.8 V, 2.5 V, or 3.3 V logic levels, and it can be connected to a microcontroller or FPGA using a level translator if necessary. The interface protocol and timing requirements are outlined in the datasheet.
  • The AD4115BCPZ is a sensitive analog device that can be affected by electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize the impact of EMI and RFI, use a shielded enclosure, keep the device away from sources of electromagnetic radiation, and use a low-pass filter or shielding on the input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4115BCPZ Overview

Use the download button to access the AD4115BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD411, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
