AD4130-4BCPZ-RL7 - Analog Devices

Description: 32 μA, Ultra-Low Power, 24-Bit Sigma-Delta ADC with Integrated PGA and FIFO Temperature range: −40°C to +125°C (LFCSP)

Download AD4130-4BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

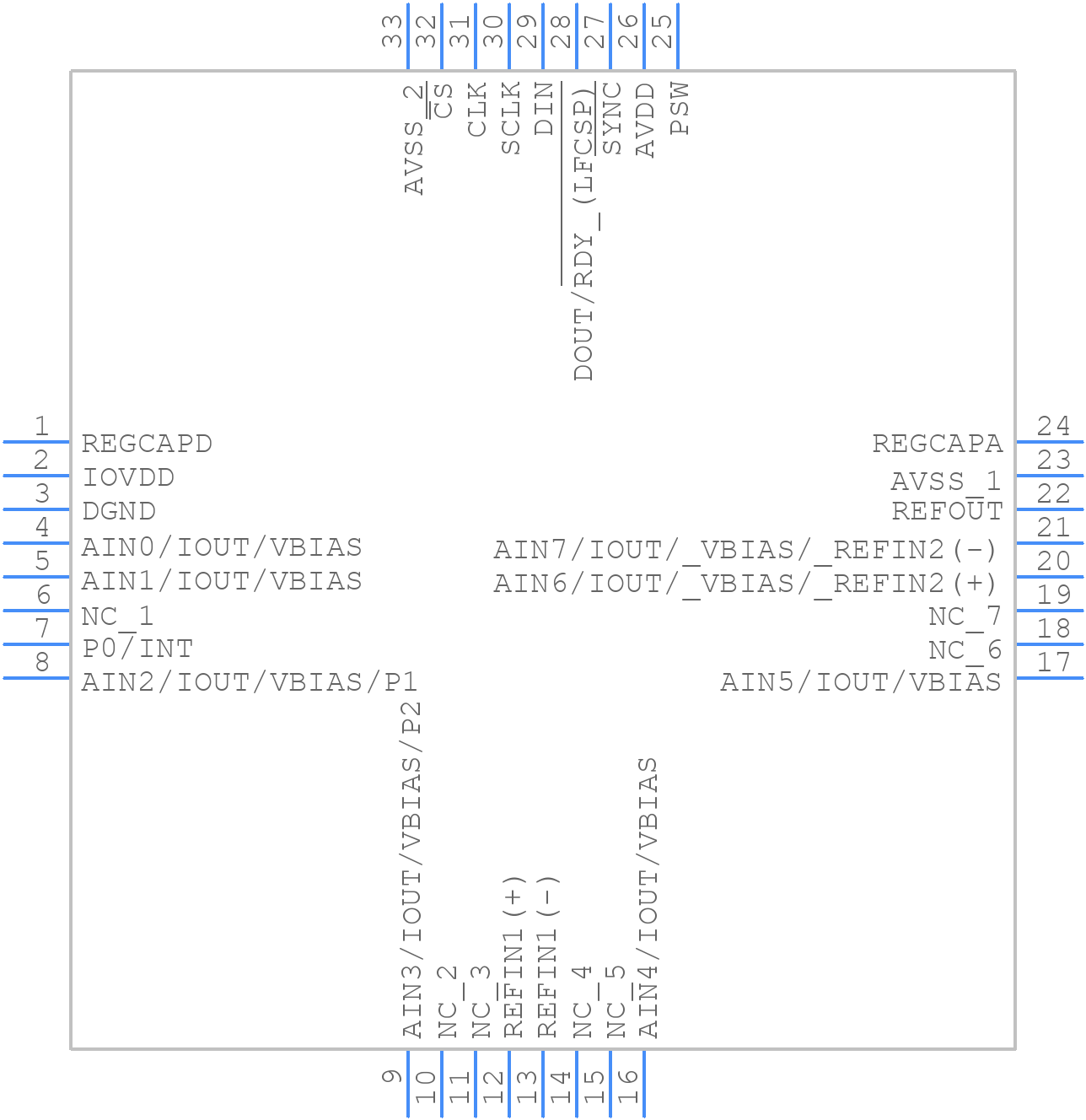

AD4130-4BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4130-4BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12_2024
click to zoom
3D Models
AD4130-4BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12_2024
click to zoom

AD4130-4BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4130-4BCPZ-RL7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFIL

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.038 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD4130-4BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4130-4BCPZ-RL7 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital traces near the analog input pins.
  • The AD4130-4BCPZ-RL7 has an internal calibration mechanism that can be used to calibrate the device. The calibration process involves writing specific values to the device's registers to adjust the gain and offset of the ADC. The calibration process should be performed at the operating temperature range of the device and after the device has reached thermal equilibrium.
  • The maximum sampling rate of the AD4130-4BCPZ-RL7 is 1.5 MSPS (million samples per second). However, the actual sampling rate that can be achieved may be limited by the system's clock frequency, the conversion mode, and the interface mode.
  • Yes, the AD4130-4BCPZ-RL7 can be used in a multi-channel application. The device has a sequencer that allows it to sequence through multiple channels, and it also has a channel scan mode that allows it to scan through multiple channels in a single conversion cycle.
  • The power consumption of the AD4130-4BCPZ-RL7 depends on the operating mode, the sampling rate, and the voltage supply. The device has a typical power consumption of 35 mW at 1.5 MSPS. To minimize power consumption, the device can be operated at a lower sampling rate, and the power-down mode can be used when the device is not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4130-4BCPZ-RL7 Overview

Use the download button to access the AD4130-4BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD413, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
