AD4130-8BCBZ-RL7 - Analog Devices

Description: 32 μA, Ultra Low Power, 24-Bit Sigma-Delta ADC with Integrated PGA and FIFO

Download AD4130-8BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

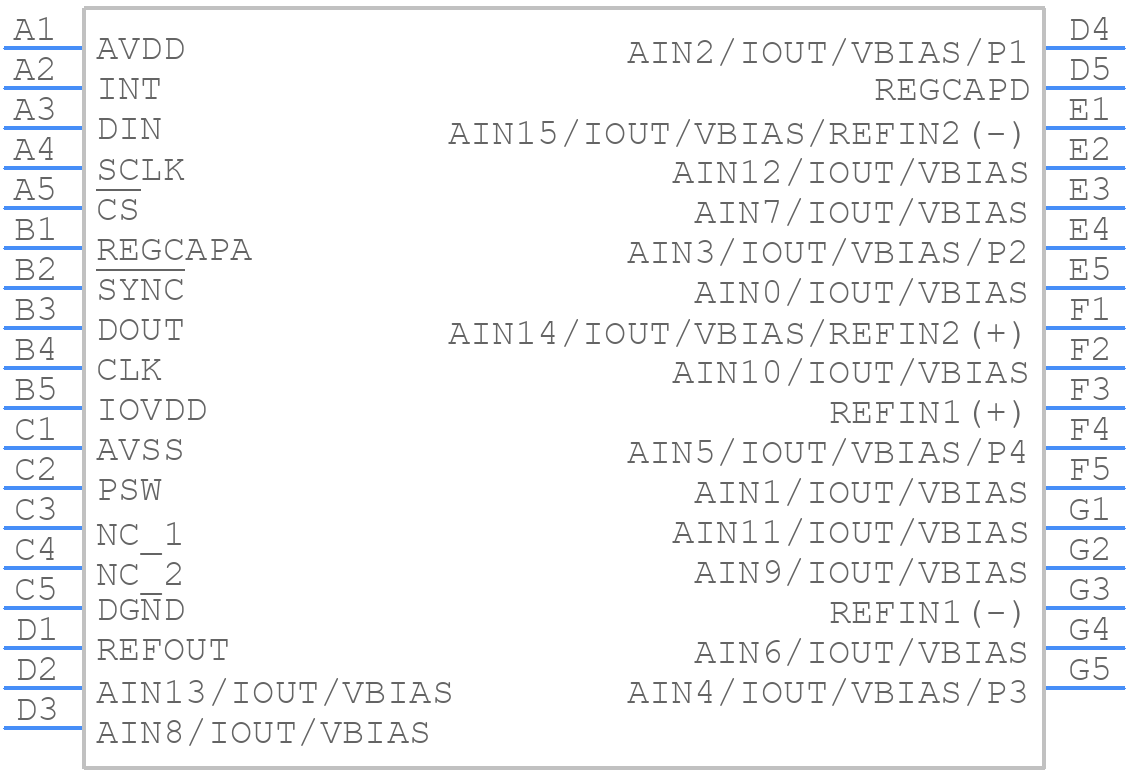

AD4130-8BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4130-8BCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - CB-35-3-1
click to zoom
3D Models
AD4130-8BCBZ-RL7 - Analog Devices - 3D model - BGA - CB-35-3-1
click to zoom

AD4130-8BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD4130-8BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-35

  • Pin Count:

    35

  • Manufacturer Package Code:

    CB-35-3

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-XBGA-B35

  • Length:

    3.56 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA35,5X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.56 mm

  • Supply Current-Max:

    0.038 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.7 mm

AD4130-8BCBZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the decoupling capacitors close to the pins.
  • To optimize performance in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Also, ensure that the analog and digital grounds are properly separated and decoupled.
  • The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin. This ensures that the analog circuitry is powered up before the digital circuitry.
  • The AD4130-8BCBZ-RL7 has an internal calibration process that is initiated by writing to the CAL register. The calibration process takes approximately 10 ms to complete. During this time, the device should not be accessed.
  • The maximum allowed input voltage range for the AD4130-8BCBZ-RL7 is from -VREF to +VREF, where VREF is the reference voltage. Exceeding this range may result in incorrect readings or damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4130-8BCBZ-RL7 Overview

Use the download button to access the AD4130-8BCBZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD413, or try a keyword search, such as Analog to Digital Converters
