AD4130-8BCPZ-RL7 - Analog Devices

Description: 24 Bit Analog to Digital Converter 8, 16 Input 1 Sigma-Delta 32-LFCSP (5x5) -40°C ~ 125°C MUX-PGA-ADC

Download AD4130-8BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

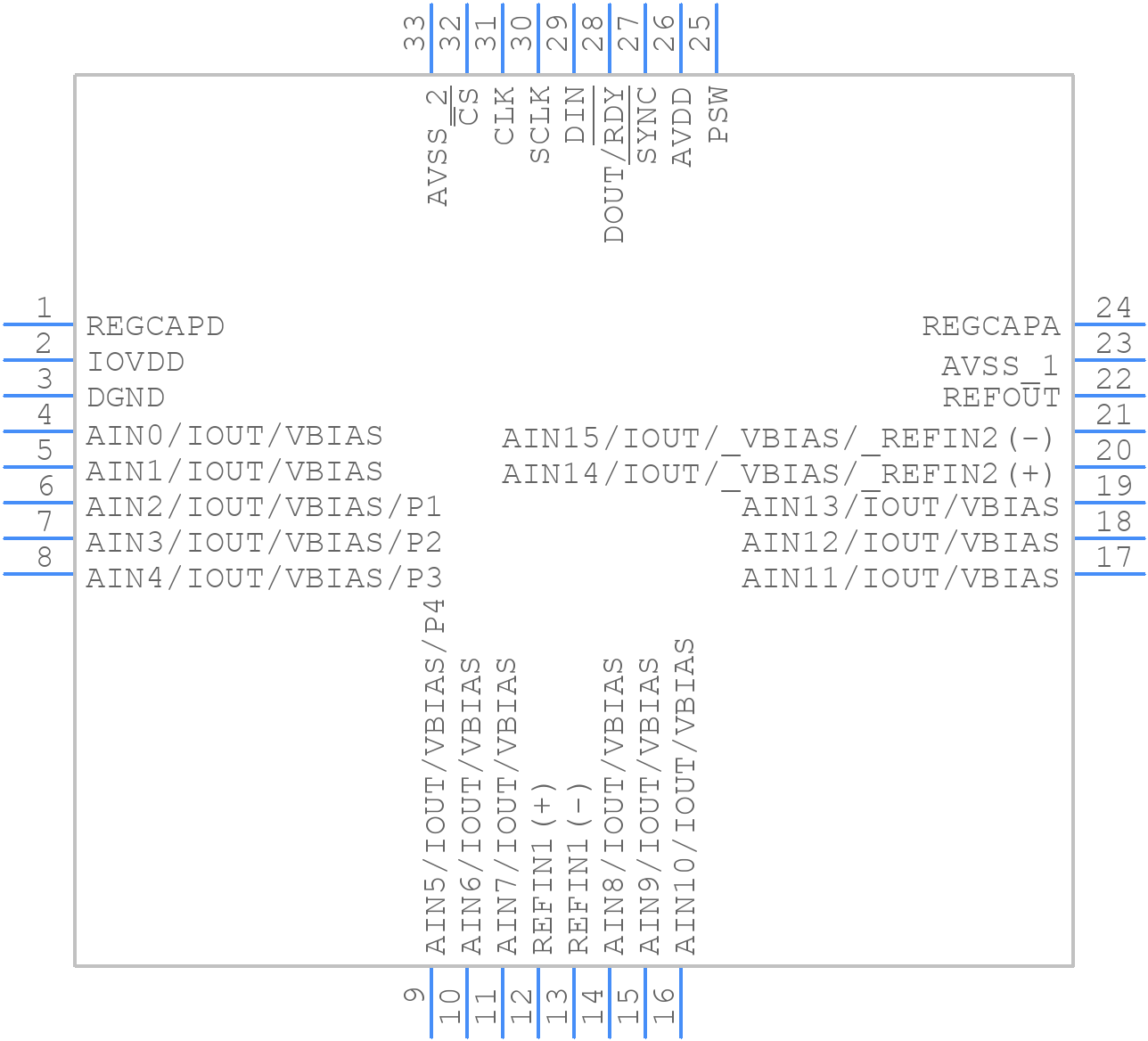

AD4130-8BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4130-8BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
AD4130-8BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

AD4130-8BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4130-8BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2022-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -3.6 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.038 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD4130-8BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD4130 can be found in the AD4130 Evaluation Board documentation and the AD4130 Layout and Routing Guidelines application note. It's essential to follow these guidelines to ensure optimal performance and minimize noise and interference.
  • The AD4130 has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve optimal accuracy. The calibration process involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired output code. Refer to the AD4130 datasheet and calibration application notes for more information.
  • The maximum sampling rate of the AD4130 depends on the specific configuration and operating conditions. In general, the AD4130 can achieve sampling rates up to 1.5 MSPS in high-speed mode and 500 kSPS in low-power mode. However, the actual sampling rate may be limited by the system's clock frequency, filter settling time, and other factors.
  • The AD4130 has built-in overvoltage and undervoltage protection, but it's still essential to implement external protection circuitry to prevent damage to the device. This can include voltage limiting resistors, TVS diodes, and other protection components. Refer to the AD4130 datasheet and application notes for more information on overvoltage and undervoltage protection.
  • The power consumption of the AD4130 depends on the specific operating conditions, including the sampling rate, voltage supply, and operating mode. In general, the AD4130 has a typical power consumption of 15 mW in high-speed mode and 5 mW in low-power mode. Refer to the AD4130 datasheet for more information on power consumption and power-down modes.
