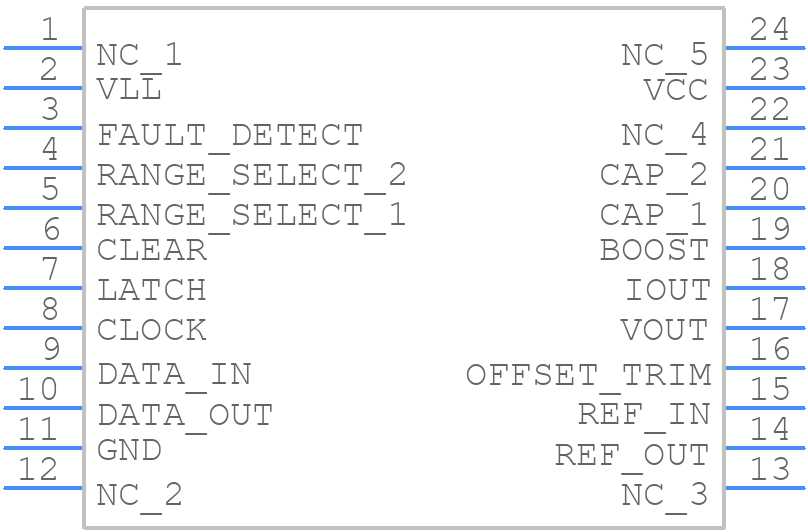

AD420AR-32-REEL - Analog Devices

AD420AR-32-REEL Details

• Manufacturer Part Number:

  AD420AR-32-REEL

• Source Url Status Check Date:

  2013-05-01 14:56:09.715

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  MS-013AD, WSOIC-24

• Pin Count:

  24

• Manufacturer Package Code:

  RW-24

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Output Voltage-Max:

  5 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e0

• Length:

  15.4 mm

• Linearity Error-Max (EL):

  0.012%

• Moisture Sensitivity Level:

  3

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Settling Time-Max:

  3000 µs

• Settling Time-Nom (tstl):

  2500 µs

• Supply Current-Max:

  5 mA

• Supply Voltage-Nom:

  24 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
