AD4682BCPZ-RL7 - Analog Devices

Description: Pseudo Differential Input, 1 MSPS/500 kSPS, Dual, Simultaneous Sampling, 16-Bit, SAR ADCs

Download AD4682BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

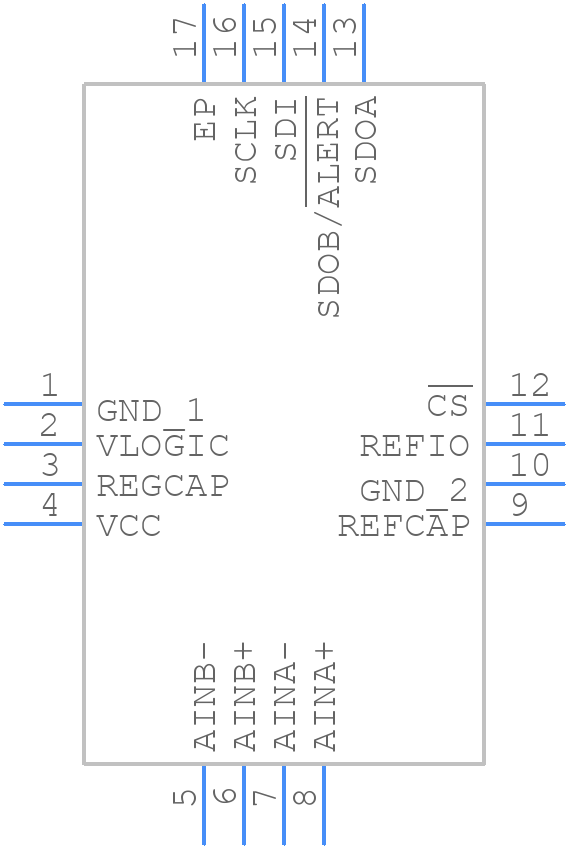

Symbol
AD4682BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4682BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD4682BCPZ-RL7
click to zoom
3D Models
AD4682BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - AD4682BCPZ-RL7
click to zoom

AD4682BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4682BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-45

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.7 V

  • Analog Input Voltage-Min:

    -1.245 V

  • Conversion Time-Max:

    0.19 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00381469%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8.4 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD4682BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4682BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the VDD pin and to keep the input traces as short as possible.
  • The AD4682BCPZ-RL7 has an internal calibration mechanism, but it may require additional calibration for specific applications. Engineers can use the device's calibration registers to adjust the gain, offset, and other parameters to optimize performance for their specific use case.
  • The AD4682BCPZ-RL7 can handle clock frequencies up to 100 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AD4682BCPZ-RL7 has a SPI-compatible interface, which can be easily interfaced with most microcontrollers or FPGAs. Engineers can use the device's datasheet and application notes to determine the correct pin connections and communication protocols.
  • The AD4682BCPZ-RL7 has a typical power consumption of 35 mW at 3.3 V and 100 MSPS. To reduce power consumption, engineers can use the device's power-down modes, reduce the clock frequency, or use a lower supply voltage.
