AD4683BCPZ-RL7 - Analog Devices

Description: Pseudo Differential Input, 1 MSPS/500 kSPS, Dual, Simultaneous Sampling, 16-Bit, SAR ADCs

Download AD4683BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

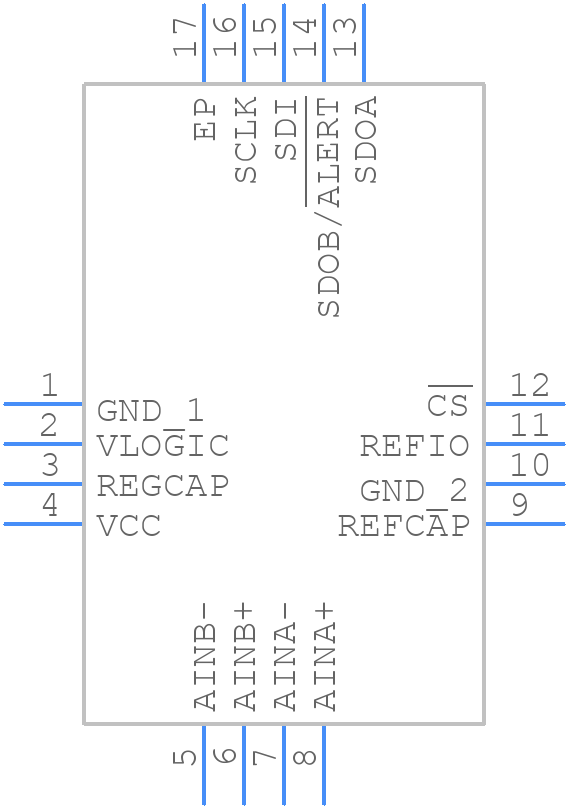

AD4683BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4683BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-45)
click to zoom
3D Models
AD4683BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-45)
click to zoom

AD4683BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4683BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-45

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.7 V

  • Analog Input Voltage-Min:

    -1.245 V

  • Conversion Time-Max:

    0.19 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00381469%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    5.6 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

AD4683BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AD4683BCPZ-RL7. Ensure that the analog and digital grounds are separated, and the analog ground is connected to the digital ground at a single point. Keep the input traces short and away from digital signals. Use a solid ground plane and decouple the power supplies with 10uF and 100nF capacitors.
  • The AD4683BCPZ-RL7 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments. Follow the recommended thermal design guidelines in the datasheet.
  • The recommended input signal range for the AD4683BCPZ-RL7 is 0V to 5V. However, the device can handle input signals up to 6V without damage. Ensure that the input signal is within the specified range to maintain accuracy and prevent damage.
  • The AD4683BCPZ-RL7 has an internal calibration mechanism. However, it's recommended to perform an external calibration to ensure optimal performance. Use a high-precision voltage reference and follow the calibration procedure outlined in the datasheet.
  • The typical power consumption of the AD4683BCPZ-RL7 is around 35mW at 5V supply voltage. However, this can vary depending on the operating frequency, input signal, and other factors. Refer to the datasheet for more information on power consumption.
