AD4PS-1+ - Mini-Circuits

Description: Surface Mount Power Splitter/Combiner

Download AD4PS-1+ Model

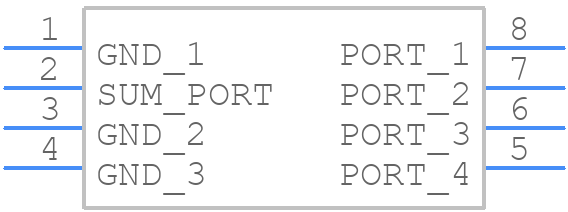

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AD4PS-1+ - Mini-Circuits PCB footprint - Other - Other - AD4PS-1+
click to zoom
3D Models
AD4PS-1+ - Mini-Circuits  - 3D model - Other - AD4PS-1+
click to zoom

AD4PS-1+ Details

  • Manufacturer Part Number:

    AD4PS-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CJ725, 8 PIN

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.8 dB

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • VSWR-Max:

    1.14
