AD5040BRJZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - AD5040BRJZ-REEL7 - Digital to Analogue Converter, 14 bit, 250 kSPS, SPI, 2.7V to 5.5V, SOT-23, 8 Pins

Download AD5040BRJZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

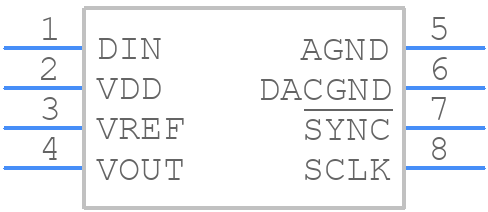

AD5040BRJZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5040BRJZ-REEL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RJ-8)
click to zoom
3D Models
AD5040BRJZ-REEL7 - Analog Devices - 3D model - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RJ-8)
click to zoom

AD5040BRJZ-REEL7 Details

  • Manufacturer Part Number:

    AD5040BRJZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.45 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5040BRJZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5040BRJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure outlined in the datasheet. Additionally, it's crucial to use a high-quality voltage reference and to minimize thermal gradients across the device. It's also recommended to use a thermocouple or thermistor to monitor the device temperature and compensate for any temperature-related errors.
  • The recommended power-up sequence for the AD5040BRJZ-REEL7 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or malfunction.
  • To handle the digital output data from the AD5040BRJZ-REEL7, it's essential to use a reliable and fast digital interface, such as SPI or I2C. It's also crucial to ensure that the microcontroller or digital system receiving the data can handle the data rate and format correctly. Additionally, it's recommended to implement error detection and correction mechanisms to ensure data integrity.
  • When using the AD5040BRJZ-REEL7, it's essential to consider EMI and EMC by using proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the analog and digital grounds to a common point, and using EMI filters on the power supply lines.
