AD5044BRUZ-REEL7 - Analog Devices

Description: Fully Accurate, Quad, 14-Bit, Buffered VOUT, 4.5 V to 5.5 V nanoDAC® with SPI Interface

Download AD5044BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

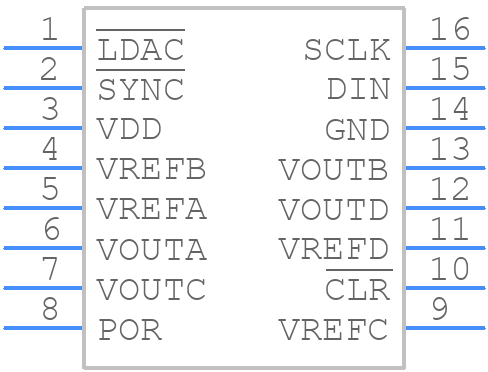

Symbol
AD5044BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5044BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
AD5044BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

AD5044BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5044BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    10.7 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5044BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the AD5044 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AD5044BRUZ-REEL7 requires a two-point calibration process, which involves applying a known input voltage and adjusting the internal DAC registers to achieve the desired output voltage. A detailed calibration procedure is provided in the AD5044 datasheet.
  • The maximum output current of the AD5044BRUZ-REEL7 is 5 mA. Exceeding this current limit can affect the output voltage accuracy, so it's essential to ensure that the output current is within the specified limit to maintain optimal performance.
  • The AD5044BRUZ-REEL7 has a built-in power-on reset (POR) circuit that ensures the device resets to a known state during power-up. Additionally, the device has a brownout detection feature that detects power supply voltage drops and resets the device to prevent incorrect operation.
  • The AD5044BRUZ-REEL7 has a thermal management strategy that involves using a thermally enhanced package and a thermal pad to dissipate heat. Proper thermal management is essential to ensure the device's reliability and prevent overheating, which can affect its performance and lifespan.
