AD5063BRMZ-1 - Analog Devices

Description: Analog Devices AD5063BRMZ-1, 16 bit Serial DAC, 10-Pin MSOP 2.7V ~ 5.5V,-40°C ~ 85°C

Download AD5063BRMZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

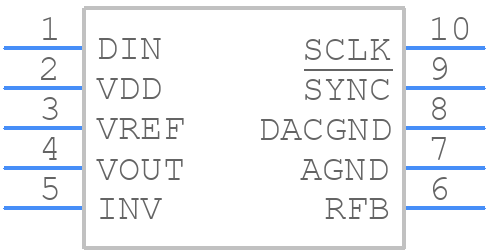

AD5063BRMZ-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5063BRMZ-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5063BRMZ-1 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5063BRMZ-1 Details

  • Manufacturer Part Number:

    AD5063BRMZ-1

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.45 V

  • Analog Output Voltage-Min:

    -2 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    1 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5063BRMZ-1 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, place the decoupling capacitors close to the device and use a low-ESR capacitor for the AVDD pin.
  • The AD5063BRMZ-1 has an internal calibration circuit that calibrates the device during power-up. However, if external calibration is required, it can be done by applying a known voltage to the VIN pin and adjusting the offset and gain registers accordingly. Refer to the datasheet for the calibration procedure.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry.
  • The AD5063BRMZ-1 outputs 16-bit data in a twos-complement format. The output data can be handled by using a microcontroller or an FPGA to read the data and perform any necessary processing or conversion.
  • The maximum sampling rate of the AD5063BRMZ-1 is 1 MSPS. The power consumption of the device increases with the sampling rate, so it's essential to consider the power consumption when selecting the sampling rate.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD5063BRMZ-1 Overview

Use the download button to access the AD5063BRMZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD506, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
