AD5065ARUZ-REEL7 - Analog Devices

Description: Fully Accurate, 12-/14-/16-Bit, Dual, VOUT nanoDAC SPI Interface, 4.5 V to 5.5 V in a TSSOP

Download AD5065ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

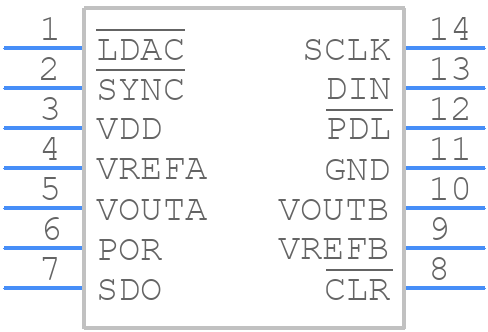

AD5065ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5065ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
AD5065ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

AD5065ARUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5065ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    13 µs

  • Settling Time-Nom (tstl):

    10.7 µs

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5065ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5065ARUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog layer, a dedicated digital layer, and two power planes. The datasheet provides a recommended layout and routing diagram, but it's also recommended to consult with Analog Devices' application notes and layout guidelines for more detailed information.
  • The AD5065ARUZ-REEL7 requires calibration and configuration to ensure optimal performance. This can be done using the device's internal calibration registers or through the use of an external calibration routine. The datasheet provides information on the calibration registers and the recommended calibration procedure. Additionally, Analog Devices provides software tools and evaluation boards that can be used to calibrate and configure the device. It's also recommended to consult with Analog Devices' application notes and technical support for more detailed information.
  • The AD5065ARUZ-REEL7 has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. Thermal management considerations include providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation of the device. The datasheet provides information on the device's thermal characteristics, and it's recommended to consult with Analog Devices' application notes and thermal management guidelines for more detailed information.
  • The AD5065ARUZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The datasheet provides information on the device's interface timing and protocol, and it's recommended to consult with Analog Devices' application notes and interface guidelines for more detailed information. Additionally, Analog Devices provides software drivers and example code for popular microcontrollers and FPGAs.
  • The AD5065ARUZ-REEL7 is a commercial-grade device and is not specifically designed for radiation-tolerant or high-reliability applications. However, Analog Devices provides information on the device's radiation tolerance and EMC performance in the datasheet and application notes. It's recommended to consult with Analog Devices' technical support and radiation tolerance experts for more detailed information and to determine the suitability of the device for specific applications.
