AD5065BRUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 2x 16bit 1LSB buffered output DAC, LDAC,

Download AD5065BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

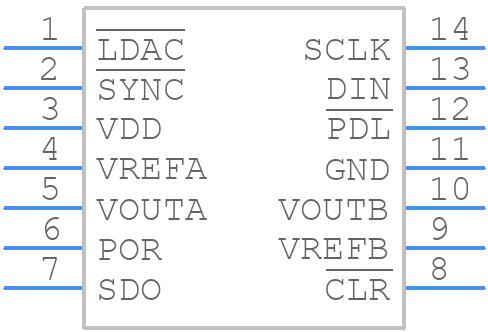

AD5065BRUZ-REEL7 - Analog Devices - PCB symbol
