AD5066BRUZ - Analog Devices

Description: Analog Devices AD5066BRUZ, 4-channel 16 bit Serial DAC, 16-Pin TSSOP

Download AD5066BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

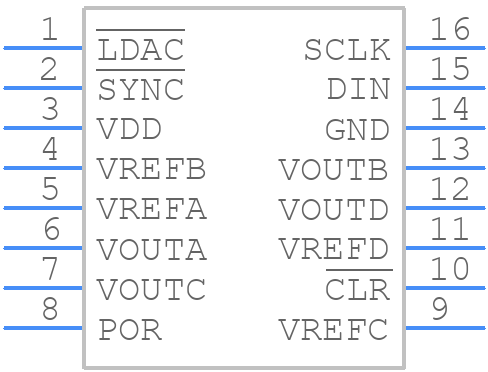

AD5066BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5066BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5066BRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5066BRUZ Details

  • Manufacturer Part Number:

    AD5066BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    15 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    3 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5066BRUZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supplies (DVDD and OVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input, ensure good power supply decoupling, and use a ground plane to reduce noise coupling. Additionally, consider using a shielded enclosure and keeping the analog and digital grounds separate.
  • The maximum sampling rate of the AD5066BRUZ is 400 kSPS. However, this can be affected by the clock frequency, conversion mode, and other factors, so be sure to consult the datasheet for specific details.
  • Yes, the AD5066BRUZ can be used in multi-channel applications. The device has a serial interface that allows multiple devices to be connected and addressed individually. However, be sure to consider the overall system bandwidth and noise performance when designing a multi-channel system.
  • The AD5066BRUZ has an internal calibration circuit that performs a self-calibration sequence during power-up. However, if additional calibration is required, it can be done using the device's calibration registers. Consult the datasheet for specific details on the calibration process.
