AD5112BCPZ80-RL7 - Analog Devices

Description: Single Channel, 64-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer

Download AD5112BCPZ80-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

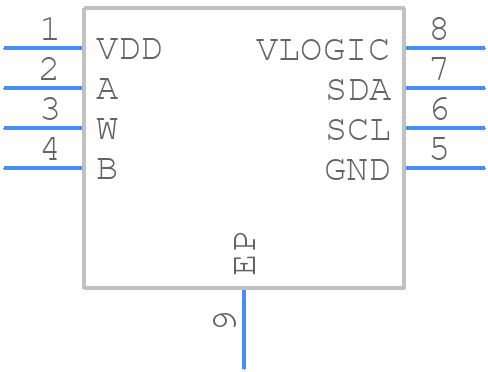

AD5112BCPZ80-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5112BCPZ80-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024-3
click to zoom
3D Models
AD5112BCPZ80-RL7 - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024-3
click to zoom

AD5112BCPZ80-RL7 Details

  • Manufacturer Part Number:

    AD5112BCPZ80-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.95

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.2 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    64

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    80000 Ω

  • Width:

    2 mm

AD5112BCPZ80-RL7 Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keep the device away from high-frequency signals, and use a solid ground plane to minimize noise. Additionally, place the device close to the voltage reference and use short, direct traces to reduce parasitic inductance.
  • Follow the calibration procedure outlined in the datasheet, and use the provided evaluation software or a custom-written program to configure the device. Ensure that the voltage reference is stable and accurate, and that the device is operated within its specified temperature range.
  • The maximum allowable voltage on the VDD pin is 5.5V. Exceeding this voltage can cause permanent damage to the device. Operating the device at the maximum voltage can also affect its performance, such as increased power consumption and reduced accuracy.
  • The POR and BOR features are designed to ensure the device powers up in a known state. To handle these features, ensure that the power supply is stable and monotonic during power-up, and that the device is properly reset after a power failure or brown-out event.
  • Use a compatible communication protocol such as SPI or I2C, and ensure that the interface signals are properly buffered and terminated to prevent signal degradation. Additionally, follow the recommended timing diagrams and protocol specifications to ensure reliable communication.
