AD5114BCPZ80-1-RL7 - Analog Devices

Description: Single Channel, 32-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer

Download AD5114BCPZ80-1-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

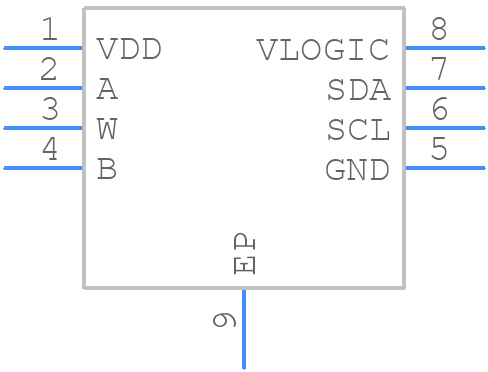

AD5114BCPZ80-1-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5114BCPZ80-1-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024
click to zoom
3D Models
AD5114BCPZ80-1-RL7 - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024
click to zoom

AD5114BCPZ80-1-RL7 Details

  • Manufacturer Part Number:

    AD5114BCPZ80-1-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.957

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.2 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    32

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    8%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    80000 Ω

  • Width:

    2 mm

AD5114BCPZ80-1-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5114BCPZ80-1-RL7 should include a solid ground plane, separate analog and digital power planes, and careful routing of sensitive analog signals. Additionally, it's recommended to place the device close to the power supply and use short, direct traces to minimize inductance and noise.
  • The AD5114BCPZ80-1-RL7 requires a one-time calibration process to set the internal voltage reference and gain. This can be done using the device's built-in calibration mode, which is accessed through the I2C interface. Refer to the datasheet and application notes for detailed calibration procedures and configuration guidelines.
  • The AD5114BCPZ80-1-RL7 is specified to operate from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. For example, the output voltage accuracy may decrease, and the device's power consumption may increase. It's essential to consider the operating temperature range and its impact on performance when designing with the AD5114BCPZ80-1-RL7.
  • The AD5114BCPZ80-1-RL7 is a high-reliability device that meets various industry standards and certifications, including AEC-Q100 for automotive applications and IEC 60747-1 for industrial applications. However, it's essential to review the device's specific certifications and compliance information, as well as Analog Devices' quality and reliability processes, to ensure the device meets the requirements of your specific application.
  • To troubleshoot issues with the AD5114BCPZ80-1-RL7, start by reviewing the device's datasheet and application notes, as well as the system's design and layout. Check for proper power supply and decoupling, ensure correct I2C communication protocols, and verify that the device is properly calibrated and configured. If issues persist, contact Analog Devices' technical support for further assistance.
