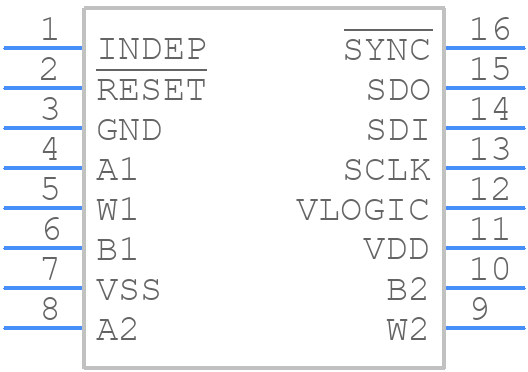

AD5122BRUZ100 - Analog Devices

AD5122BRUZ100 Details

• Manufacturer Part Number:

  AD5122BRUZ100

• Source Url Status Check Date:

  2013-05-01 14:56:10.007

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  16

• Manufacturer Package Code:

  RU-16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  REST RESISTOR VALUES IS 10000OHM AND CONTROL INTERFACE IS INCREMENT/DECREMENT

• Bandwidth-Nom:

  3 kHz

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -2.5 V

• Number of Functions:

  2

• Number of Positions:

  128

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR/LOGARITHMIC

• Resistance Tolerance-Max:

  8%

• Resistor Terminal Voltage-Max:

  2.75 V

• Resistor Terminal Voltage-Min:

  -2.25 V

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  35 ppm/°C

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  100000 Ω

• Width:

  4.4 mm
