AD5207BRUZ100 - Analog Devices

Description: AD5207BRUZ100, Digital Potentiometer 100kΩ 256-Position Linear 2-channel Serial-3 Wire, Serial-SPI 14-Pin TSSOP

Download AD5207BRUZ100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

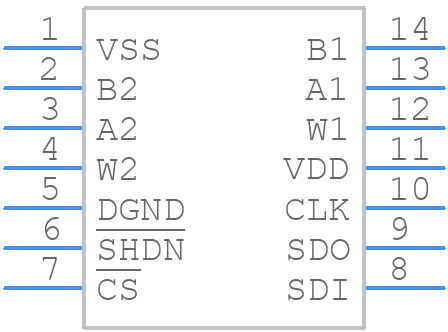

Symbol
AD5207BRUZ100 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5207BRUZ100 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14 (TSSOP)_1
click to zoom
3D Models
AD5207BRUZ100 - Analog Devices - 3D model - Small Outline Packages - RU-14 (TSSOP)_1
click to zoom

AD5207BRUZ100 Details

  • Manufacturer Part Number:

    AD5207BRUZ100

  • Source Url Status Check Date:

    2013-05-01 14:56:10.711

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    500 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    1000000 Ω

  • Width:

    4.4 mm

AD5207BRUZ100 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5207BRUZ100 involves keeping the digital and analog signals separate, using a solid ground plane, and minimizing the length of the traces between the device and the resistors. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the device should be placed close to the resistors to minimize parasitic inductance.
  • To ensure accurate resistance values with the AD5207BRUZ100, it is essential to use high-precision resistors with low temperature coefficients. The resistors should also be matched to minimize mismatch errors. Additionally, the device should be operated within its specified temperature range, and the resistance values should be calibrated during production to account for any manufacturing variations.
  • The maximum operating frequency of the AD5207BRUZ100 is not explicitly stated in the datasheet, but it is typically limited by the settling time of the internal amplifier and the resistance switching time. In general, the device can operate up to 100 kHz, but this may vary depending on the specific application and the required settling time.
  • The AD5207BRUZ100 can be interfaced with a microcontroller using a standard SPI interface. The device requires a clock signal, a chip select signal, and a data signal. The microcontroller should provide a clock frequency of up to 25 MHz, and the data should be transmitted in 16-bit words. The device also requires a power supply voltage of 2.7 V to 5.5 V.
  • The power consumption of the AD5207BRUZ100 depends on the operating frequency, the supply voltage, and the resistance values. In general, the device consumes around 1.5 mA of current at a supply voltage of 3.3 V and an operating frequency of 100 kHz. However, this value may vary depending on the specific application and the required performance.
