AD5220BRMZ100-R7 - Analog Devices

Description: Increment/Decrement Digital Potentiometer 100kΩ, −40°C to +85°C 8-Lead MSOP

Download AD5220BRMZ100-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

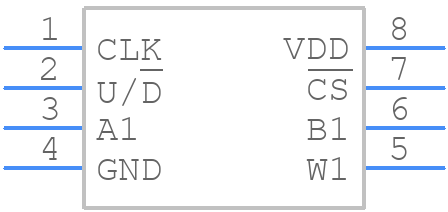

Symbol
AD5220BRMZ100-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5220BRMZ100-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MINI_SO
click to zoom

AD5220BRMZ100-R7 Details

  • Manufacturer Part Number:

    AD5220BRMZ100-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Bandwidth-Nom:

    0.069 kHz

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    128

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    800 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

AD5220BRMZ100-R7 Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keep the device away from high-current carrying traces, and use a solid ground plane to minimize noise. Additionally, place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) to reduce noise and improve signal integrity.
  • Calibration involves applying a known resistance to the device and adjusting the internal calibration registers to match the expected value. It's essential to follow the calibration procedure outlined in the datasheet and to use a high-precision reference resistor to ensure accurate measurements.
  • The AD5220BRMZ100-R7 is rated for operation from -40°C to +125°C. Temperature changes can affect the device's accuracy, linearity, and noise performance. It's essential to consider temperature compensation and calibration when operating the device in extreme temperatures.
  • The AD5220BRMZ100-R7 can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) bus. The recommended communication protocol is SPI, as it provides faster data transfer rates and easier implementation.
  • The AD5220BRMZ100-R7 requires a single 2.7 V to 5.5 V power supply. It's essential to use a low-noise, high-PSRR power supply and to decouple the power pins with ceramic capacitors to ensure a stable power supply and minimize noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5220BRMZ100-R7 Overview

Use the download button to access the AD5220BRMZ100-R7 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD522, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
