AD5248BRMZ100-RL7 - Analog Devices

Description: 100kOhmDigital Potentiometer 256POS Volatile Automotive 10-Pin MSOP T/R

Download AD5248BRMZ100-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

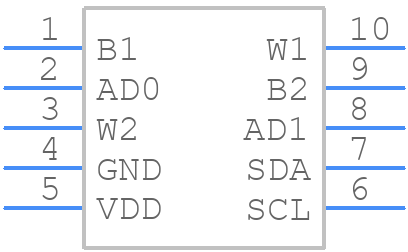

Symbol
AD5248BRMZ100-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5248BRMZ100-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD5248BRMZ100-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD5248BRMZ100-RL7 Details

  • Manufacturer Part Number:

    AD5248BRMZ100-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:11.109

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    3 X 4.90 MM, ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO OPERATES AT 5 V SUPPLY

  • Bandwidth-Nom:

    0.04 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

AD5248BRMZ100-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5248BRMZ100-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To ensure the accuracy of the AD5248BRMZ100-RL7's digital-to-analog conversion, it's essential to follow proper PCB layout guidelines, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, calibrating the device and using a high-quality voltage reference can also improve accuracy.
  • The recommended power-up sequence for the AD5248BRMZ100-RL7 is to first apply the analog power supply (VDDA), followed by the digital power supply (VDD), and then the logic inputs. This sequence helps prevent latch-up and ensures proper device operation.
  • The AD5248BRMZ100-RL7 can source or sink up to 10 mA of current. To handle the output current capability, it's recommended to use a buffer amplifier or an op-amp to increase the output current drive capability, if necessary. Additionally, ensure that the output is properly terminated to prevent overvoltage or overcurrent conditions.
  • The AD5248BRMZ100-RL7 has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and minimize power dissipation in the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
