A good PCB layout for the AD5248BRMZ50-RL7 should include a solid ground plane, separate analog and digital power planes, and careful routing of sensitive analog signals. It's also recommended to place the device close to the analog signal sources and to use shielding to minimize electromagnetic interference.
To ensure accuracy and linearity, it's essential to follow proper calibration procedures, use a high-quality voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a temperature sensor to monitor the device temperature and compensate for any temperature-related errors.
The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). During power-down, the sequence should be reversed. It's also essential to ensure that the digital interface is inactive during power-up and power-down to prevent unwanted digital signals from affecting the analog circuitry.
To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering or shielding on the input and output lines. Additionally, consider using a common-mode choke or ferrite beads to filter out high-frequency noise.
The AD5248BRMZ50-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and minimize thermal gradients on the PCB. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
AD5248BRMZ50-RL7 Overview

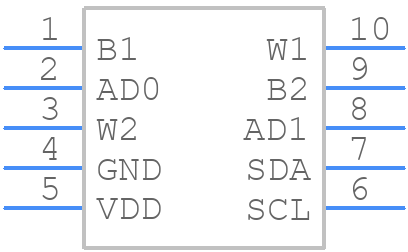

Use the download button to access the AD5248BRMZ50-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD524,
or try a keyword search, such as Digital Potentiometers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
