AD524SD - Analog Devices

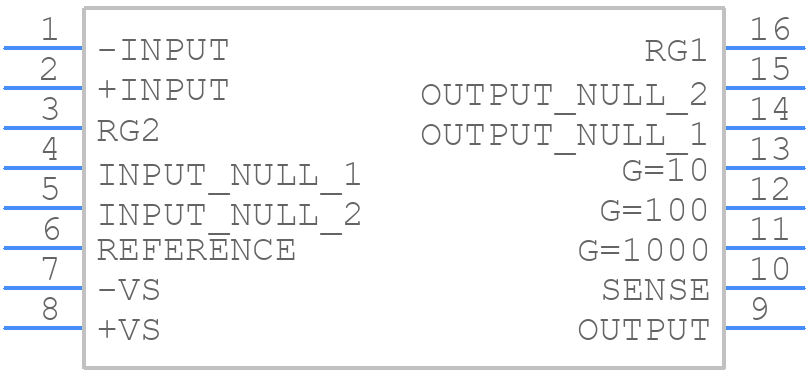

AD524SD Details

• Manufacturer Part Number:

  AD524SD

• Source Url Status Check Date:

  2013-05-01 14:56:11.132

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  D-16

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.05 µA

• Bandwidth (3dB)-Nom:

  1 MHz

• Common-mode Reject Ratio-Min:

  70 dB

• Input Offset Current-Max (IIO):

  0.035 µA

• Input Offset Voltage-Max:

  100 µV

• JESD-30 Code:

  R-CDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.05 mm

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Non-linearity-Max:

  0.01%

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Slew Rate-Nom:

  5 V/us

• Supply Current-Max:

  5 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Voltage Gain-Max:

  1000

• Voltage Gain-Min:

  1

• Voltage Gain-Nom:

  10

• Width:

  7.62 mm
