Part Image

AD526BDZ - Analog Devices

Description: Software Programmable Gain Amplifier

Download AD526BDZ Model

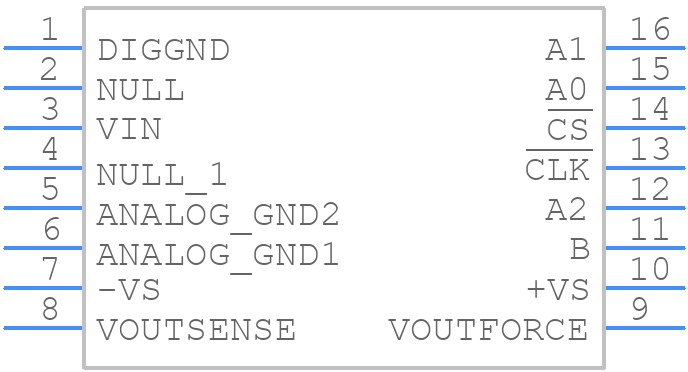

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

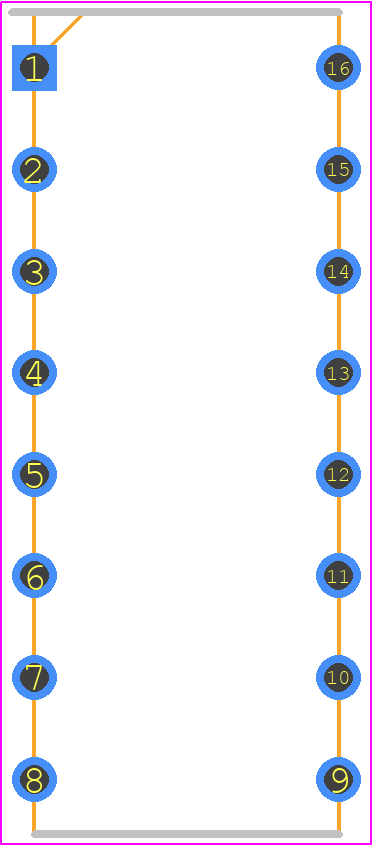

AD526BDZ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D-16
click to zoom

AD526BDZ Details

  • Manufacturer Part Number:

    AD526BDZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    D-16

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • Risk Rank:

    6.62

  • YTEOL:

    3

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Bandwidth (3dB)-Nom:

    4 MHz

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    20.32 mm

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.001%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.553 mm

  • Slew Rate-Nom:

    24 V/us

  • Supply Current-Max:

    14 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    16

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    16

  • Width:

    7.62 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD526BDZ Overview

Use the download button to access the AD526BDZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD526, or try a keyword search, such as Instrumentation Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to AD526BDZ

Showing 0 results

AD526BDZ Alternates

Showing results

Image Part Number Model
Part Image AD526CDZ Analog Devices Inc

Software Programmable Gain Amplifier

Part Image AD526BD Analog Devices Inc

Software Programmable Gain Amplifier

Part Image AD526SD/883B Analog Devices Inc

IC INSTRUMENTATION AMPLIFIER, 500 uV OFFSET-MAX, 4 MHz BAND WIDTH, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Instrumentation Amplifier

Part Image AD526CD Analog Devices Inc

IC INSTRUMENTATION AMPLIFIER, 500 uV OFFSET-MAX, 4 MHz BAND WIDTH, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Instrumentation Amplifier

Part Image 5962-9089401MEX Analog Devices Inc

IC INSTRUMENTATION AMPLIFIER, 500 uV OFFSET-MAX, 4 MHz BAND WIDTH, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Instrumentation Amplifier

For a full list of alternate parts for AD526BDZ, check out Findchips.com
