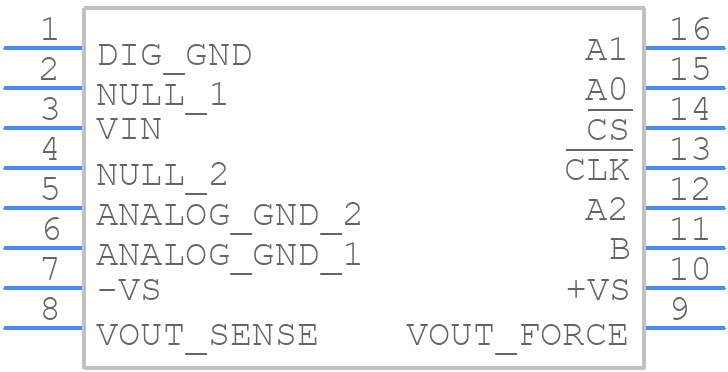

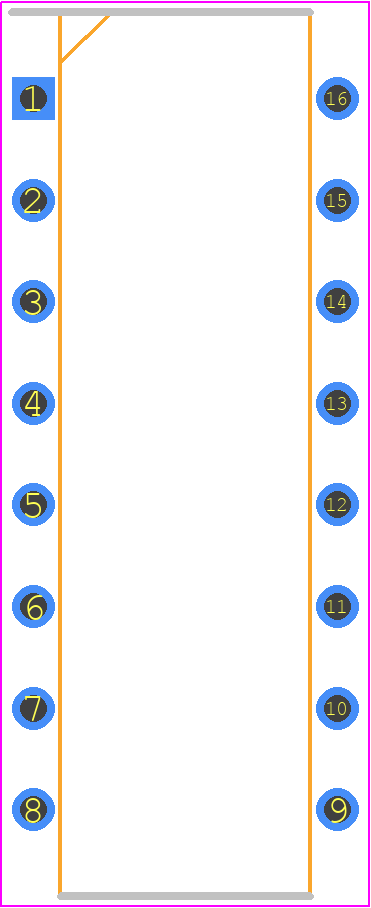

AD526JNZ - Analog Devices

AD526JNZ Details

• Manufacturer Part Number:

  AD526JNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  N-16

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.00015 µA

• Bandwidth (3dB)-Nom:

  4 MHz

• Input Offset Voltage-Max:

  1500 µV

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  22.1 mm

• Neg Supply Voltage Limit-Max:

  -16.5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Non-linearity-Max:

  0.001%

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.46 mm

• Slew Rate-Nom:

  24 V/us

• Supply Current-Max:

  14 mA

• Supply Voltage Limit-Max:

  16.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Voltage Gain-Max:

  16

• Voltage Gain-Min:

  1

• Voltage Gain-Nom:

  16

• Width:

  7.62 mm
