AD5290YRMZ100-R7 - Analog Devices

Description: Digital Potentiometer ICs +/-15V 8-Bit DigiPOT

Download AD5290YRMZ100-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

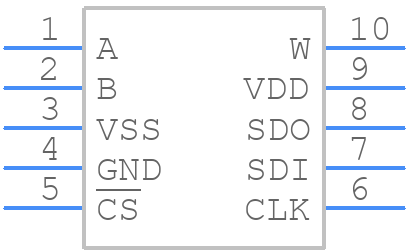

Symbol
AD5290YRMZ100-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5290YRMZ100-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5290YRMZ100-R7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5290YRMZ100-R7 Details

  • Manufacturer Part Number:

    AD5290YRMZ100-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    DEVICE SUPPORTS DUAL SUPPLY OPERATION

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    30%

  • Resistor Terminal Voltage-Max:

    15 V

  • Resistor Terminal Voltage-Min:

    -10 V

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

AD5290YRMZ100-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5290YRMZ100-R7 should include a solid ground plane, separate analog and digital power planes, and a star-configuration for the power supply connections. Additionally, keep the digital and analog signals separate and avoid running them parallel to each other.
  • To ensure accuracy, use a high-precision voltage reference, ensure the power supply is stable and noise-free, and use a low-noise, low-impedance signal path. Also, calibrate the device during manufacturing or at power-up to compensate for any internal resistor tolerances.
  • The recommended method is to use a 2-wire serial interface (I2C-compatible) to program the wiper position. Use a clock frequency of 100 kHz to 400 kHz, and ensure the SCL and SDA lines are properly terminated to prevent signal reflections.
  • The POR and BOR features ensure the device resets to a known state during power-up or brown-out conditions. To handle these features, ensure the power supply is stable and monotonic during power-up, and add external circuitry to filter out power supply noise and glitches.
  • To protect the device from ESD, use a human body model (HBM) ESD protection circuit, such as a TVS diode or an ESD protection array, on the I/O lines. Also, ensure proper handling and storage procedures are followed during manufacturing and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5290YRMZ100-R7 Overview

Use the download button to access the AD5290YRMZ100-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD529, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
