AD5308BRU - Analog Devices

Description: Digital to Analog Converters - DAC OCTAL 8 BIT SPI MICROPWR IC

Download AD5308BRU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

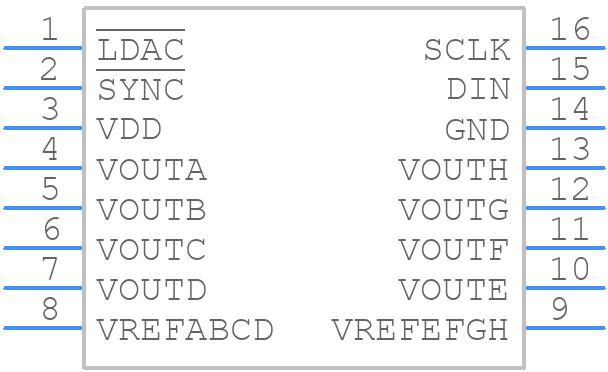

AD5308BRU - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5308BRU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5308BRU - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5308BRU Details

  • Manufacturer Part Number:

    AD5308BRU

  • Source Url Status Check Date:

    2013-05-01 14:56:11.809

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.293%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5308BRU Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD5308BRU involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended. Refer to the AD5308BRU evaluation board layout for a reference design.
  • To ensure accurate voltage output from the AD5308BRU, it is essential to use a high-accuracy voltage reference, such as the ADR4520 or ADR4540. Additionally, the output voltage should be buffered with an op-amp, such as the OP184, to minimize output impedance and ensure accurate voltage output.
  • The AD5308BRU can source up to 5 mA of output current. However, it is recommended to limit the output current to 2 mA to ensure accurate voltage output and to prevent overheating of the device.
  • The AD5308BRU can be programmed using a microcontroller through a 3-wire serial interface. The microcontroller sends 16-bit data to the AD5308BRU, which then converts the data to an analog output voltage. Refer to the AD5308BRU datasheet for the serial interface protocol and timing diagrams.
  • The AD5308BRU has a power-on reset (POR) circuit that initializes the device to a default state upon power-up. The POR circuit ensures that the device outputs a zero-scale voltage (typically 0 V) during power-up, and then transitions to the programmed output voltage after the POR timeout period (typically 10 ms).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5308BRU Overview

Use the download button to access the AD5308BRU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD530, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
