AD5310RBRMZ-RL7 - Analog Devices

Description: 10-Bit nanoDAC, SPI Interface and 2 ppm/°C On-Chip Reference

Download AD5310RBRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

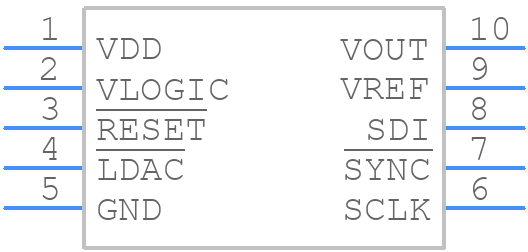

Symbol
AD5310RBRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5310RBRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5310RBRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5310RBRMZ-RL7 Details

  • Manufacturer Part Number:

    AD5310RBRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5310RBRMZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5310RBRMZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the VREF pin and to keep the input and output traces as short as possible.
  • To ensure accurate voltage regulation with the AD5310RBRMZ-RL7, it's essential to decouple the input voltage with a capacitor, use a low-ESR capacitor for the output, and minimize the output voltage noise. Additionally, the input voltage should be within the recommended range, and the output current should not exceed the maximum rating.
  • The AD5310RBRMZ-RL7 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a heat sink can also be used to improve heat dissipation. It's essential to follow the recommended thermal management strategy to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the AD5310RBRMZ-RL7, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Check for any signs of overheating, and ensure that the device is properly decoupled. If the issue persists, consult the datasheet and application notes for further guidance.
  • The AD5310RBRMZ-RL7 is a high-frequency device, and it's essential to take EMI and RFI considerations into account during the design process. Use a shielded enclosure, keep the input and output traces as short as possible, and use a common-mode choke to reduce EMI emissions. Additionally, follow proper PCB layout and grounding techniques to minimize radiation.
