AD5311RBRMZ-RL7 - Analog Devices

Description: Digital to Analog Converters - DAC 10-BIT 12C nanoDAC+ with on-chip ref

Download AD5311RBRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

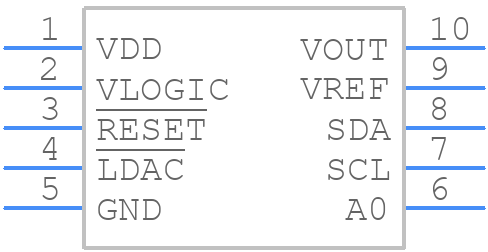

AD5311RBRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5311RBRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10 (MSOP)
click to zoom
3D Models
AD5311RBRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RM-10 (MSOP)
click to zoom

AD5311RBRMZ-RL7 Details

  • Manufacturer Part Number:

    AD5311RBRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5311RBRMZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5311RBRMZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5311RBRMZ-RL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR452, and to minimize noise and interference on the input lines. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current of the AD5311RBRMZ-RL7 is 10mA. Exceeding this limit can cause the device to overheat, leading to reduced performance and accuracy. It's essential to ensure that the output current is within the specified limit to maintain the device's performance and reliability.
  • The AD5311RBRMZ-RL7 has a built-in noise filter that helps to reduce the effects of input voltage noise and ripple. However, it's still essential to use a high-quality power supply with low noise and ripple to ensure the device's accuracy and performance.
  • The recommended operating temperature range for the AD5311RBRMZ-RL7 is -40°C to +125°C. Operating the device outside this range can affect its performance and accuracy.
