AD5312BRMZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC DUAL 10-BIT VOLTAGE OUT DAC I.C.

Download AD5312BRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

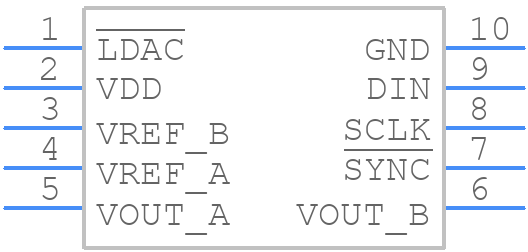

Symbol
AD5312BRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5312BRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5312BRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5312BRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5312BRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.45 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5312BRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5312BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5312BRMZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR452, and to minimize noise and interference on the input and output lines. Additionally, the device should be operated within its specified temperature range and power supply voltage range.
  • The recommended power-up sequence for the AD5312BRMZ-REEL7 is to first apply the analog power supply (VCC) and then the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up or damage to the device.
  • To troubleshoot issues with the AD5312BRMZ-REEL7's output voltage, first check the input voltage and ensure it's within the specified range. Then, verify that the device is properly configured and that the output voltage is not being loaded excessively. If the issue persists, check for noise and interference on the input and output lines, and ensure that the device is operated within its specified temperature range and power supply voltage range.
  • The AD5312BRMZ-REEL7 is specified to operate from -40°C to 125°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, it's essential to ensure that the device is properly heat-sinked and that the temperature of the device does not exceed its specified maximum junction temperature.
