AD5314BCPZ-REEL7 - Analog Devices

Description: 2.5 V to 5.5 V, 500 µA, Quad Voltage Output 10-Bit DAC in 10-Lead Packages , -40°C ~ 105°C

Download AD5314BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

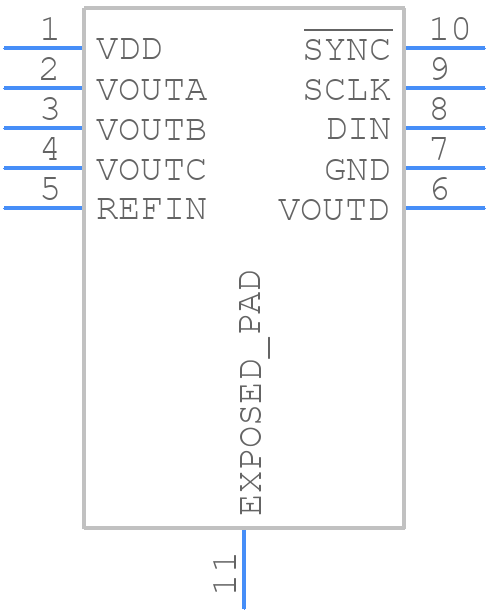

AD5314BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5314BCPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9_2025
click to zoom
3D Models
AD5314BCPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9_2025
click to zoom

AD5314BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5314BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5314BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5314 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, the device's exposed pad should be connected to the analog ground plane.
  • To ensure accurate voltage regulation with the AD5314, it is essential to decouple the input and output pins properly. A 10uF ceramic capacitor should be used at the input pin, and a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel should be used at the output pin. Additionally, the output voltage should be set using a resistive divider network with 1% tolerance resistors.
  • The AD5314 can deliver up to 500mA of output current. However, the output current should be limited to 300mA for optimal performance and to prevent overheating. The device's thermal shutdown feature will activate if the junction temperature exceeds 150°C.
  • The AD5314 can be programmed using a 3-wire serial interface (SPI-compatible). The microcontroller should be connected to the AD5314's SCLK, SDIN, and SYNC pins. The microcontroller should send a 16-bit command word to the AD5314, which includes the output voltage code and other configuration bits. The AD5314's datasheet provides a detailed description of the command word format and the programming sequence.
  • The typical power-up time of the AD5314 is around 100us. However, this time can vary depending on the output voltage setting, the input voltage, and the output capacitor value. The power-up time can be reduced by using a smaller output capacitor or by using a faster input voltage ramp.
