AD5317RBRUZ - Analog Devices

Description: ANALOG DEVICES - AD5317RBRUZ - Digital to Analogue Converter, Quad, 10 bit, SPI, 2.7V to 5.5V, TSSOP, 16 Pins

Download AD5317RBRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

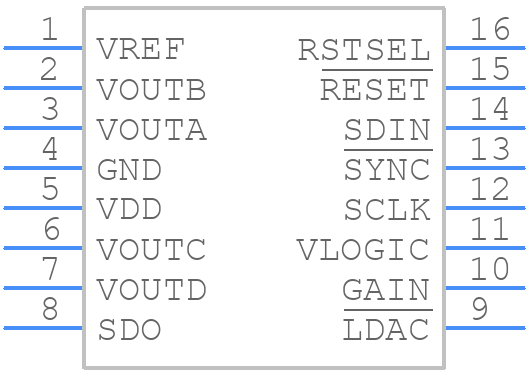

AD5317RBRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5317RBRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5317RBRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5317RBRUZ Details

  • Manufacturer Part Number:

    AD5317RBRUZ

  • Source Url Status Check Date:

    2013-05-01 14:56:11.994

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.049%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5317RBRUZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, with the AD5317RBRUZ placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. Keep the analog and digital grounds separate, and use a single-point ground connection to minimize noise and crosstalk.
  • To ensure accurate voltage reference output, make sure to decouple the VREF pin with a 10uF capacitor to GND, and use a low-noise, low-impedance power supply. Also, ensure that the input voltage is within the recommended operating range of 2.7V to 5.5V.
  • The recommended output capacitor value is 10uF. This capacitor helps to filter out noise and ripple on the output voltage, ensuring a stable and accurate reference voltage. A larger capacitor value can be used, but it may increase the startup time of the device.
  • The AD5317RBRUZ has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended operating range. Also, add external circuitry, such as a voltage supervisor, to detect and respond to power-on and brown-out conditions.
  • The thermal impedance of the AD5317RBRUZ is typically 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C. To minimize thermal effects, ensure good airflow, use a heat sink if necessary, and keep the device away from heat sources.
