AD5320BRMZ-REEL7 - Analog Devices

Description: 2.7 V to 5.5 V, 140 µA, Rail-to-Rail Voltage Output 12-Bit DAC in SOT-23 and MicroSOIC Packages

Download AD5320BRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

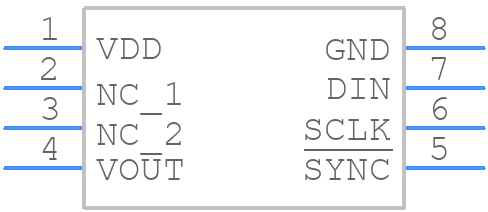

AD5320BRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5320BRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8
click to zoom
3D Models
AD5320BRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-8
click to zoom

AD5320BRMZ-REEL7 Details

  • Manufacturer Part Number:

    AD5320BRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5320BRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5320BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the AD5320BRMZ-REEL7's output voltage, it's essential to use a high-precision voltage reference, such as the ADR421 or ADR4520. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current of the AD5320BRMZ-REEL7 is 10mA. Exceeding this limit can cause the device to overheat, leading to reduced performance and accuracy. It's essential to ensure that the output current is within the specified limit to maintain the device's performance and reliability.
  • The AD5320BRMZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The device's control registers can be accessed using a microcontroller or FPGA, allowing for dynamic control of the output voltage and other parameters.
  • The AD5320BRMZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. Additionally, the device's thermal shutdown feature can be used to prevent overheating.
