AD5320BRMZ - Analog Devices

Description: DAC,AD5320BRM 12bit 1 channel SPI SOIC8

Download AD5320BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

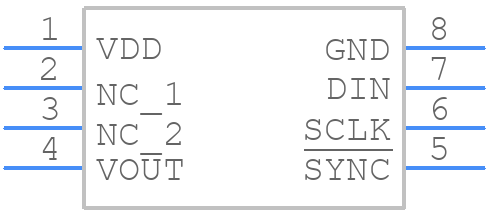

AD5320BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5320BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8
click to zoom
3D Models
AD5320BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-8
click to zoom

AD5320BRMZ Details

  • Manufacturer Part Number:

    AD5320BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5320BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. Also, use short and direct traces for the analog inputs and outputs, and avoid crossing digital signals over the analog signals.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure outlined in the datasheet. Additionally, consider using a temperature sensor to monitor the device temperature and adjust the calibration accordingly. Also, ensure that the device is operated within the recommended operating temperature range.
  • Potential sources of noise and interference include electromagnetic interference (EMI), radio-frequency interference (RFI), and power supply noise. To mitigate these, use shielding, filtering, and decoupling capacitors. Also, ensure that the device is operated in a well-regulated power supply environment.
  • To troubleshoot issues, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input signals and ensure they are within the specified range. Use an oscilloscope to monitor the output signals and look for any signs of noise or distortion. Also, review the device's configuration and calibration settings to ensure they are correct.
  • When using the AD5320BRMZ in a system with multiple power domains, ensure that the device is powered from a clean and well-regulated power supply. Use level shifters or voltage translators to interface with other power domains, and ensure that the device's power supply is isolated from other power domains. Also, consider using power sequencing to ensure that the device is powered up and down correctly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5320BRMZ Overview

Use the download button to access the AD5320BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD532, or try a keyword search, such as Digital to Analog Converters
