AD5322BRMZ - Analog Devices

Description: AD5322BRMZ, 12 bit-Bit DAC Dual, 125ksps, SPI, Microwire, 10-Pin MSOP

Download AD5322BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

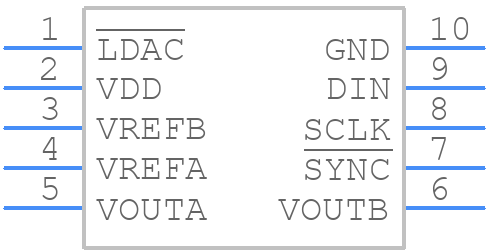

Symbol
AD5322BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5322BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
AD5322BRMZ - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

AD5322BRMZ Details

  • Manufacturer Part Number:

    AD5322BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.45 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5322BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and direct. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane.
  • To ensure accuracy and linearity, it's essential to follow the recommended calibration procedure outlined in the datasheet. Additionally, it's crucial to use a high-quality voltage reference and to minimize thermal gradients across the device. It's also recommended to use a thermocouple or a thermistor to monitor the device temperature and compensate for any temperature-related errors.
  • The recommended power-up sequence is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). The power-down sequence should be reversed, with VDD being turned off first, followed by VCC. This sequence helps prevent damage to the device and ensures proper operation.
  • The AD5322BRMZ uses a 3-wire serial interface (SPI-compatible) for communication. The recommended protocol is to use a clock frequency of up to 20 MHz, with a data transfer rate of up to 20 Mbps. It's essential to ensure that the interface signals are properly terminated and that the clock signal is clean and jitter-free.
  • It's recommended to use a combination of ceramic and electrolytic capacitors for decoupling, with a minimum of 10 uF of capacitance per power pin. Additionally, it's recommended to use a pi-filter or a ferrite bead in series with the power supply lines to filter out high-frequency noise.
