AD5326BRUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 12-BIT QUAD I2C DAC I.C.

Download AD5326BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

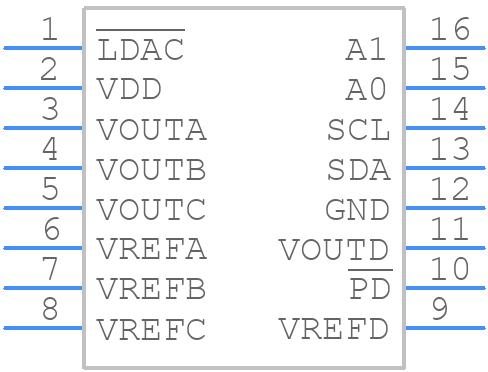

AD5326BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5326BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD5326BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD5326BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5326BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153-AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.2441%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5326BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5326BRUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog layer, a dedicated digital layer, and two power planes. The datasheet provides a recommended layout and routing diagram, but it's also recommended to consult with an experienced PCB designer for optimal results.
  • To ensure the accuracy and linearity of the AD5326BRUZ-REEL7 over the entire operating temperature range, it is recommended to calibrate the device at multiple temperatures, use a high-quality voltage reference, and ensure that the device is operated within its specified operating conditions. Additionally, it is recommended to use a temperature sensor to monitor the device temperature and compensate for any temperature-related errors.
  • The recommended power-up sequence for the AD5326BRUZ-REEL7 is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and then the logic inputs. This sequence helps to prevent damage or malfunction due to voltage sequencing issues. It is also recommended to use a power-up sequence controller or a voltage supervisor to ensure a safe and controlled power-up sequence.
  • To troubleshoot common issues with the AD5326BRUZ-REEL7, it is recommended to first consult the datasheet and the application notes provided by Analog Devices Inc. Additionally, it is recommended to use a logic analyzer or an oscilloscope to debug the digital communication interface, and to use a multimeter or a voltage meter to measure the output voltage and verify its accuracy. It is also recommended to check the power supply voltage, the reference voltage, and the input signals to ensure they are within the specified operating conditions.
  • The recommended method for programming the AD5326BRUZ-REEL7 is to use the SPI interface, which is a 3-wire serial interface that allows for easy programming and configuration of the device. The AD5326BRUZ-REEL7 also has an I2C interface, which can be used as an alternative to the SPI interface. The datasheet provides detailed information on the programming interfaces and the available programming commands.
