AD5331BRUZ-REEL - Analog Devices

Description: Digital to Analog Converters - DAC IC 10-BIT SINGLE

Download AD5331BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

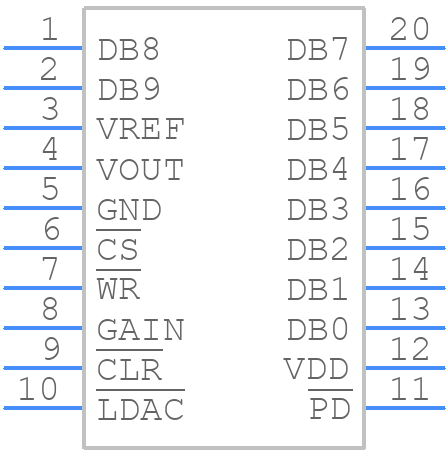

AD5331BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5331BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD5331BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD5331BRUZ-REEL Details

  • Manufacturer Part Number:

    AD5331BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.29%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5331BRUZ-REEL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5331BRUZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the DAC output and the load. Additionally, it's recommended to use a low-pass filter to reduce high-frequency noise and to decouple the power supply pins with capacitors.
  • To calibrate the AD5331BRUZ-REEL, you can use the internal calibration feature by writing to the calibration register. This feature allows you to adjust the offset and gain of the DAC to achieve the highest accuracy. Additionally, you can use external calibration methods such as using a precision voltage reference and adjusting the DAC output to match the reference voltage.
  • The maximum output current of the AD5331BRUZ-REEL is 10mA. If the output current exceeds this limit, it can cause the output voltage to droop, resulting in reduced accuracy. To avoid this, it's recommended to use a buffer amplifier or an op-amp to increase the output current capability.
  • The AD5331BRUZ-REEL has built-in overvoltage and undervoltage protection. If the input voltage exceeds the maximum rating, the device will enter a high-impedance state to protect itself from damage. Additionally, the device has a power-on reset feature that ensures the DAC output is in a known state during power-up.
  • The thermal shutdown temperature of the AD5331BRUZ-REEL is 150°C. If the device temperature exceeds this limit, it will enter a thermal shutdown mode to prevent damage. During thermal shutdown, the DAC output will be in a high-impedance state, and the device will not respond to input signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5331BRUZ-REEL Overview

Use the download button to access the AD5331BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD533, or try a keyword search, such as Digital to Analog Converters
