AD5331BRUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC IC 10-BIT SINGLE

Download AD5331BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

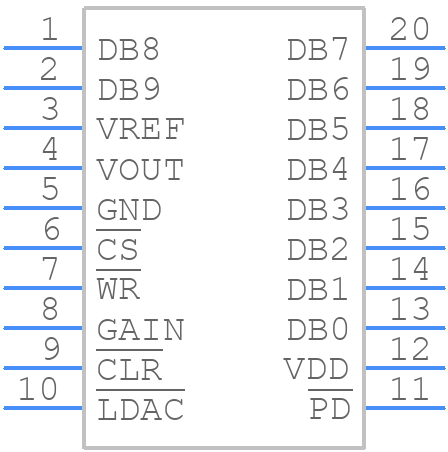

Symbol
AD5331BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5331BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
AD5331BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

AD5331BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5331BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.29%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5331BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD5331BRUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it is recommended to use a low-pass filter on the reference input to reduce noise.
  • To ensure proper calibration and configuration, it is recommended to follow the calibration procedure outlined in the datasheet, which involves setting the internal reference voltage, configuring the output range, and adjusting the gain and offset. Additionally, it is recommended to consult the application notes and technical documentation provided by Analog Devices Inc.
  • The AD5331BRUZ-REEL7 has a maximum junction temperature of 150°C, and it is recommended to ensure that the device is operated within the recommended temperature range of -40°C to 125°C. Thermal management considerations include providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • To troubleshoot common issues with the AD5331BRUZ-REEL7, it is recommended to consult the troubleshooting guide provided in the datasheet, which outlines common issues and their solutions. Additionally, it is recommended to check the power supply voltage, ensure that the device is properly configured and calibrated, and verify that the output voltage is within the expected range.
  • The AD5331BRUZ-REEL7 has built-in ESD protection, but it is still recommended to take precautions to prevent electrostatic discharge. This includes handling the device by the body, using an anti-static wrist strap, and storing the device in an anti-static bag or container.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5331BRUZ-REEL7 Overview

Use the download button to access the AD5331BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD533, or try a keyword search, such as Digital to Analog Converters
