AD5338BRMZ-1REEL7 - Analog Devices

Description: 10 Bit Digital to Analog Converter 2-40°C ~ 105°C 2.5V ~ 5.5V 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Download AD5338BRMZ-1REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

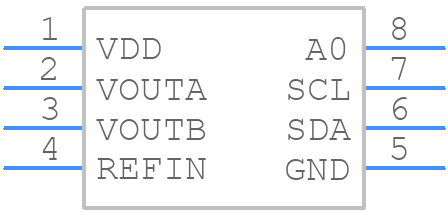

AD5338BRMZ-1REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5338BRMZ-1REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8
click to zoom
3D Models
AD5338BRMZ-1REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-8
click to zoom

AD5338BRMZ-1REEL7 Details

  • Manufacturer Part Number:

    AD5338BRMZ-1REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.499 V

  • Analog Output Voltage-Min:

    0.001 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    9 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Current-Max:

    0.375 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD5338BRMZ-1REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5338BRMZ-1REEL7 should include a solid ground plane, separate analog and digital power domains, and careful routing of sensitive analog signals. Additionally, it's recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) to minimize noise and signal degradation.
  • The AD5338BRMZ-1REEL7 has an internal calibration mechanism that can be accessed through the SPI interface. The device should be calibrated during power-up or after a reset. The calibration process involves writing specific commands to the device's registers to set the internal voltage reference and trim the output voltage. Refer to the datasheet for detailed calibration procedures.
  • The maximum output current of the AD5338BRMZ-1REEL7 is 10 mA. Exceeding this current limit can cause the output voltage to droop, affecting accuracy. To maintain accuracy, ensure that the output current is within the specified limit, and consider adding an external buffer amplifier if higher currents are required.
  • The AD5338BRMZ-1REEL7 has a POR and BOR feature that resets the device during power-up or when the supply voltage drops below a certain threshold. To handle these features, ensure that the device is properly powered up, and the supply voltage is stable before accessing the device. Additionally, consider adding external circuitry to debounce the reset signal and ensure a clean power-up sequence.
  • The AD5338BRMZ-1REEL7 has a maximum junction temperature of 150°C. To ensure optimal performance, it's essential to implement a thermal management strategy, such as using a heat sink, thermal vias, or a thermally conductive PCB material. High temperatures can affect the device's accuracy, linearity, and long-term reliability.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

AD5338BRMZ-1REEL7 Overview

Use the download button to access the AD5338BRMZ-1REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD533, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
