AD5391BSTZ-3 - Analog Devices

Description: Serial Input Single-Supply, 12-/14-Bit Voltage Output

Download AD5391BSTZ-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD5391BSTZ-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

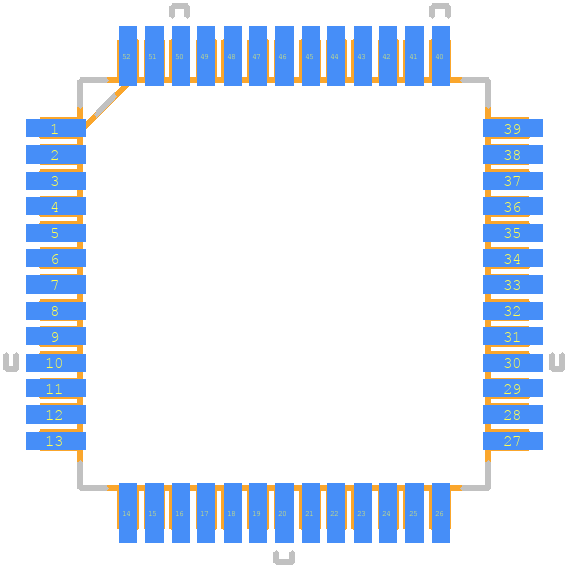

AD5391BSTZ-3 - Analog Devices PCB footprint - Other - Other - QFP65P1200X1200X160-52N
click to zoom

AD5391BSTZ-3 Details

  • Manufacturer Part Number:

    AD5391BSTZ-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    ST-52

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP52,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Settling Time-Max:

    8 µs

  • Settling Time-Nom (tstl):

    3 µs

  • Supply Current-Max:

    0.475 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

AD5391BSTZ-3 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for decoupling and place it close to the device.
  • The AD5391BSTZ-3 has an internal calibration circuit that can be enabled by setting the CAL pin high. The device will then perform a self-calibration sequence. It's also recommended to perform an external calibration using an external voltage reference and a precision resistor network.
  • The maximum input voltage that the AD5391BSTZ-3 can handle is ±16.5V. Exceeding this voltage can damage the device. It's recommended to use input protection circuits, such as voltage limiters or clamp circuits, to prevent overvoltage conditions.
  • The AD5391BSTZ-3 has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device requires a clock signal, chip select signal, and data in/data out signals to be connected to the microcontroller or FPGA.
  • The power consumption of the AD5391BSTZ-3 is typically 35mW. To reduce power consumption, the device can be put into a low-power mode by setting the PD pin high. Additionally, the device can be powered down completely by setting the EN pin low.
