AD5398BCBZ-REEL7 - Analog Devices

Description: IC DAC 10BIT CURRENT-SINK 9WLCSP

Download AD5398BCBZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

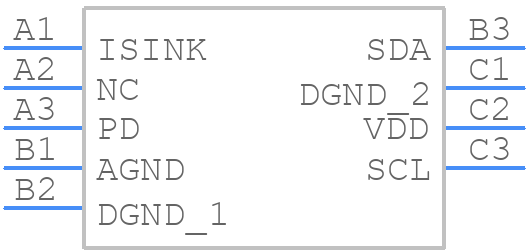

AD5398BCBZ-REEL7 - Analog Devices - PCB symbol
