AD5398BCPZ-REEL - Analog Devices

Description: 120 mA, Current Sinking, 10-Bit, I2 C DAC

Download AD5398BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

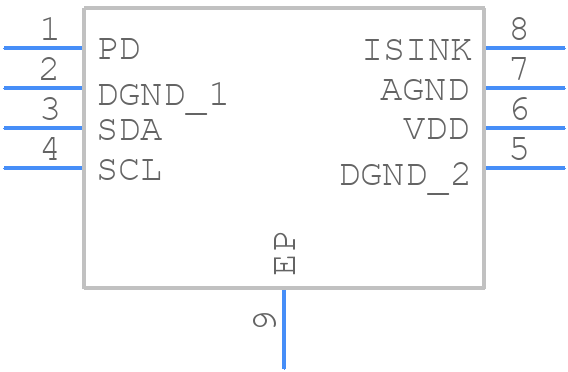

Symbol
AD5398BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5398BCPZ-REEL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP]-ren1
click to zoom
3D Models
AD5398BCPZ-REEL - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Lead Frame Chip Scale Package [LFCSP]-ren1
click to zoom

AD5398BCPZ-REEL Details

  • Manufacturer Part Number:

    AD5398BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, LEAD FREE, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Analog Output Voltage-Min:

    0.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    250 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5398BCPZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5398BCPZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain to achieve the desired output. Additionally, consider using an external calibration signal source and a precision voltage reference to improve accuracy.
  • The AD5398BCPZ-REEL has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Additionally, consider using thermal simulation tools to model the thermal performance of the system.
  • To minimize EMI and EMC issues, use proper shielding, grounding, and filtering techniques. Ensure that the device is placed in a shielded enclosure, and use EMI filters on the input and output lines. Additionally, consider using a common-mode choke to reduce electromagnetic radiation.
  • The AD5398BCPZ-REEL meets the reliability and quality standards set by Analog Devices, including a mean time between failures (MTBF) of 1 million hours and a failure rate of 10 FIT (failures per billion hours). Analog Devices ensures the device meets these standards through rigorous testing, inspection, and quality control processes.
