AD5398BCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - AD5398BCPZ-REEL7 - Digital to Analogue Converter, 10 bit, 31 kSPS, I2C, 2.7V to 5.5V, LFCSP, 8 Pins

Download AD5398BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

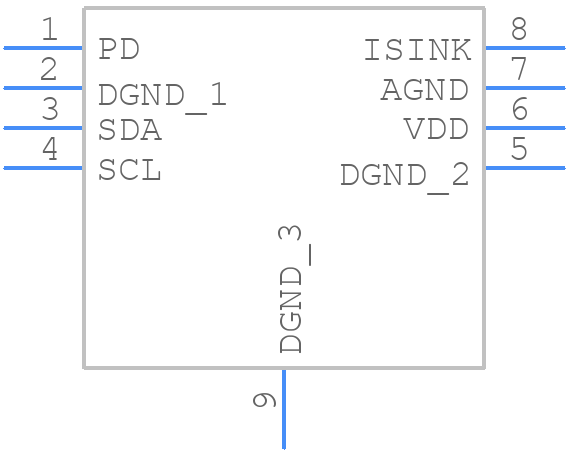

AD5398BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5398BCPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-13 (LFCSP)
click to zoom
3D Models
AD5398BCPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-13 (LFCSP)
click to zoom

AD5398BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD5398BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, LEAD FREE, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Analog Output Voltage-Min:

    0.6 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    250 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD5398BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD5398 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate calibration, it is essential to follow the calibration procedure outlined in the datasheet, using a high-precision voltage reference and a low-noise power supply. Additionally, the calibration process should be performed in a temperature-controlled environment.
  • The maximum allowable noise on the power supply lines for the AD5398 is 10mV peak-to-peak. Exceeding this limit can affect the accuracy and performance of the device.
  • Yes, the AD5398 can be used with a different voltage reference, but the reference voltage must be within the specified range of 2.5V to 5.5V. Additionally, the voltage reference should be stable and have low noise to ensure accurate performance.
  • To troubleshoot issues with the AD5398, start by verifying the power supply voltage, checking for noise on the power supply lines, and ensuring that the device is properly calibrated. If issues persist, check the PCB layout and signal routing, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5398BCPZ-REEL7 Overview

Use the download button to access the AD5398BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD539, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
