AD5405YCPZ - Analog Devices

Description: AD5405YCPZ, 12 bit-Bit DAC Dual, 21.3Msps, Parallel, 40-Pin LFCSP EP

Download AD5405YCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

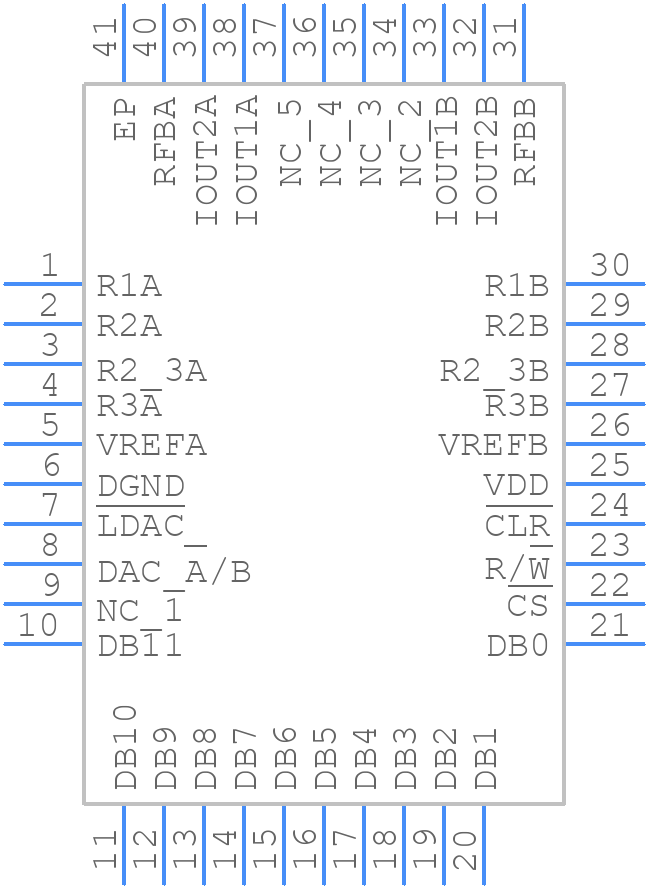

AD5405YCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5405YCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-1 (LFCSP)_BSC
click to zoom
3D Models
AD5405YCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-1 (LFCSP)_BSC
click to zoom

AD5405YCPZ Details

  • Manufacturer Part Number:

    AD5405YCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Max:

    0.12 µs

  • Settling Time-Nom (tstl):

    0.015 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD5405YCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and direct.
  • The AD5405YCPZ has an internal calibration mechanism. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers accordingly.
  • The recommended input voltage range for the AD5405YCPZ is 0 to 5V. Operating outside this range may affect the accuracy of the measurements. For optimal performance, ensure the input voltage is within the recommended range and consider using input voltage buffering or attenuation if necessary.
  • The AD5405YCPZ outputs 16-bit digital data. To handle the output data, use a microcontroller or FPGA to read the data and apply digital filtering techniques such as averaging or median filtering to reduce noise and improve accuracy.
  • The AD5405YCPZ has a specified operating temperature range of -40°C to 125°C. Temperature changes can affect the device's accuracy and linearity. Ensure proper thermal management by providing adequate heat sinking and airflow, and consider using temperature compensation techniques if necessary.
