AD5412AREZ-REEL7 - Analog Devices

Description: Single Channel, 12-Bit, Current Source & Voltage Output DAC, HART Connectivity

Download AD5412AREZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

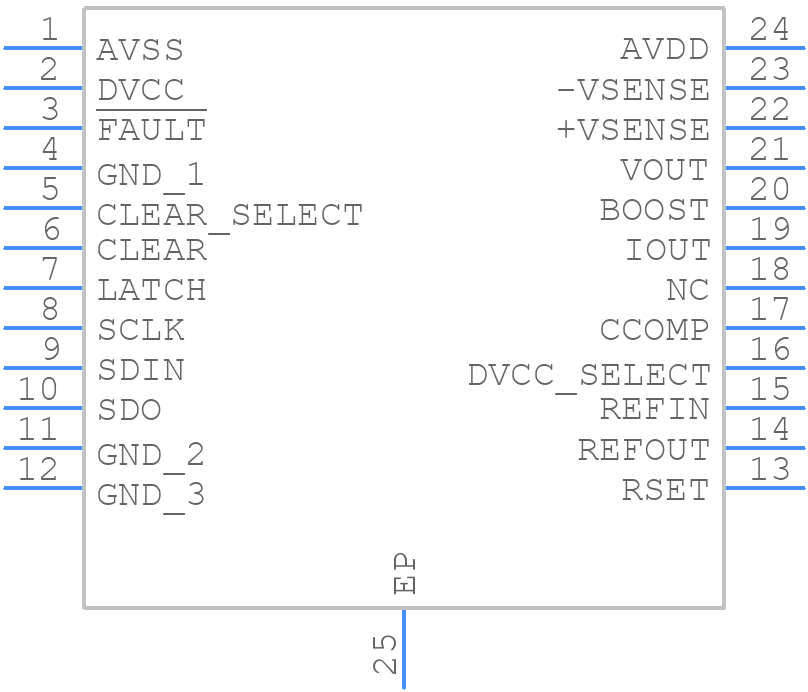

Symbol
AD5412AREZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5412AREZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RE-24 (TSSOP_EP)
click to zoom
3D Models
AD5412AREZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RE-24 (TSSOP_EP)
click to zoom

AD5412AREZ-REEL7 Details

  • Manufacturer Part Number:

    AD5412AREZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RE-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.032%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    25 µs

  • Settling Time-Nom (tstl):

    32 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5412AREZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to use thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
  • To ensure accurate voltage regulation, it's essential to follow the recommended input and output capacitor selection, and to decouple the input and output pins properly. Additionally, the output voltage should be monitored and adjusted as needed to compensate for any voltage drops.
  • To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the input and output traces short and away from each other, and use a common-mode choke or ferrite bead to filter the input and output lines.
  • To troubleshoot common issues, check the input voltage, output load, and PCB layout for any anomalies. Verify that the input and output capacitors are properly selected and decoupled. Also, check for any thermal issues or overheating, and ensure that the device is operated within its recommended operating conditions.
  • The AD5412 is manufactured by Analog Devices Inc, which adheres to strict quality and reliability standards, including ISO 9001 and IATF 16949. The device is also qualified to various industry standards, such as AEC-Q100 for automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5412AREZ-REEL7 Overview

Use the download button to access the AD5412AREZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD541, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
