AD5415YRUZ - Analog Devices

Description: AD5415YRUZ, 12 bit-Bit DAC Dual, 2.47Msps, SPI, Microwire, 24-Pin TSSOP

Download AD5415YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

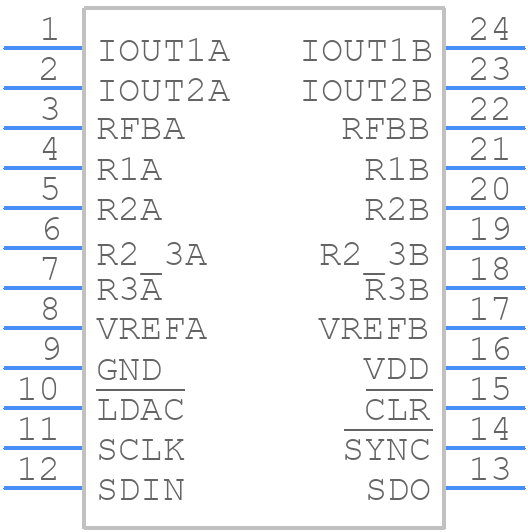

AD5415YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5415YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-24 (TSSOP)
click to zoom
3D Models
AD5415YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-24 (TSSOP)
click to zoom

AD5415YRUZ Details

  • Manufacturer Part Number:

    AD5415YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AD, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.08 µs

  • Supply Current-Max:

    0.01 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5415YRUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital signals separate, and use shielded cables for analog signals. Route the analog signals close to the AD5415YRUZ and avoid crossing digital signals over analog signals.
  • The AD5415YRUZ has an internal calibration circuit that can be initiated by setting the CAL pin high. The calibration procedure involves setting the CAL pin high, waiting for the calibration cycle to complete, and then setting the CAL pin low. Refer to the datasheet for the specific calibration sequence and timing.
  • The AD5415YRUZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Avoid blocking airflow around the device, and ensure the PCB is designed to dissipate heat efficiently.
  • The AD5415YRUZ has a power-on reset circuit that initializes the device on power-up. Ensure a monotonic power-up sequence, with the analog supply (AVDD) powered up before the digital supply (DVDD). During power-down, ensure the digital supply is powered down before the analog supply.
  • Use a shielded enclosure and ensure the AD5415YRUZ is placed away from sources of electromagnetic interference. Use filtering and shielding on the input and output signals, and consider using a common-mode choke to reduce electromagnetic radiation.
