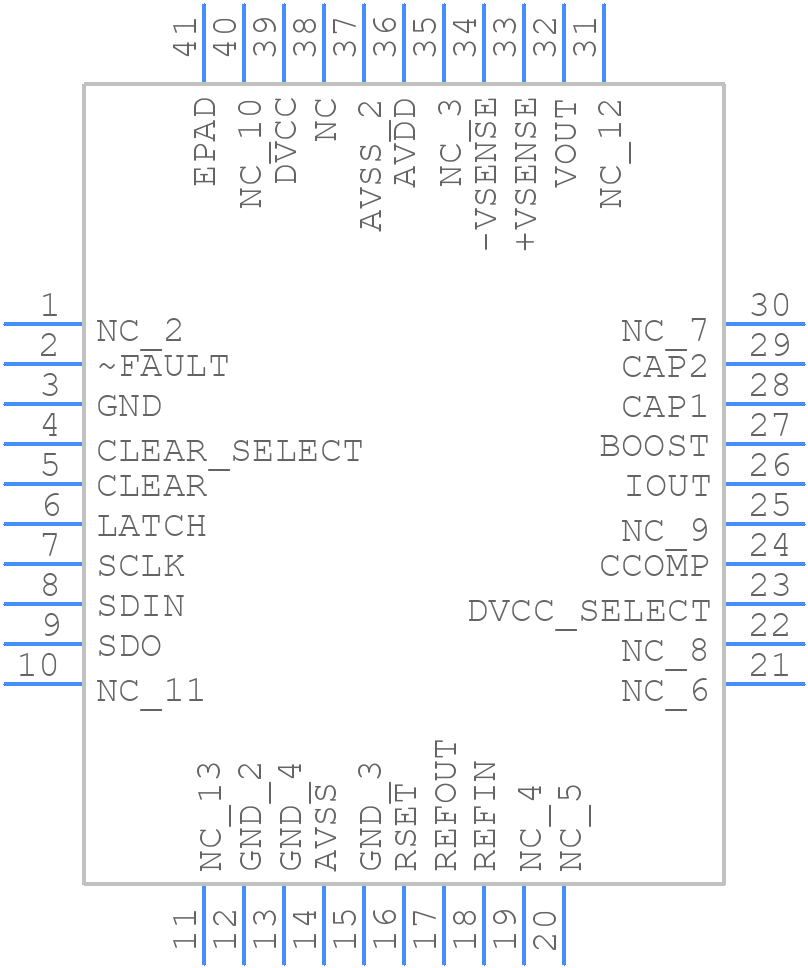

AD5422BCPZ-REEL - Analog Devices

AD5422BCPZ-REEL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the AD5422?
  A good PCB layout for the AD5422 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the AVDD pin.
• How do I ensure accurate calibration of the AD5422?
  To ensure accurate calibration of the AD5422, it's essential to follow the recommended calibration procedure outlined in the datasheet. This involves applying a known input voltage, setting the gain and offset registers, and verifying the output voltage. It's also crucial to minimize noise and interference during the calibration process.
• What is the maximum output current of the AD5422, and how does it affect the output voltage?
  The maximum output current of the AD5422 is 10 mA. If the output current exceeds this limit, the output voltage may droop or become unstable. To avoid this, it's recommended to add an external buffer amplifier or to use an output stage with a higher current capability.
• How do I handle the thermal considerations for the AD5422?
  The AD5422 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-power or high-temperature applications. A thermal pad or heat sink can be used to dissipate heat, and the device should be operated within the recommended temperature range.
• What are the EMI and RFI considerations for the AD5422?
  To minimize EMI and RFI issues with the AD5422, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signals. Additionally, the device should be operated with a stable power supply, and the PCB layout should be designed to minimize radiation.
