AD5424YRUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 8-BIT IOUT DAC PARELLED INT/FACE I.C.

Download AD5424YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

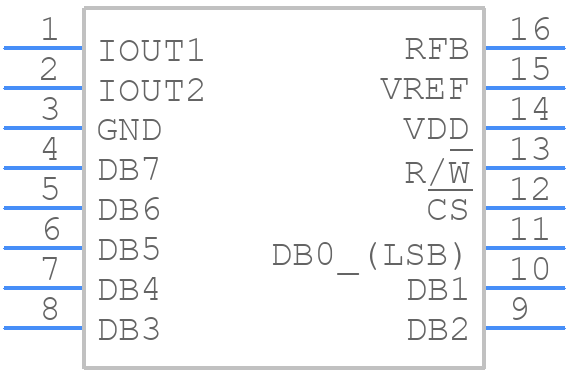

Symbol
AD5424YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5424YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
AD5424YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

AD5424YRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5424YRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Analog Output Voltage-Min:

    0.4 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.06 µs

  • Settling Time-Nom (tstl):

    0.03 µs

  • Supply Current-Max:

    0.005 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5424YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to use thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
  • Calibration and trimming require a thorough understanding of the device's internal registers and calibration coefficients. It's recommended to follow the application note and calibration guide provided by Analog Devices, and to use their evaluation board and software tools to simplify the process.
  • Potential sources of noise and interference include power supply noise, digital noise, and electromagnetic interference. To mitigate these, use a low-noise power supply, separate analog and digital grounds, and use shielding and filtering techniques such as ferrite beads and RC filters.
  • Implementing fault detection and protection mechanisms involves monitoring the device's internal registers and status flags, as well as using external circuitry to detect overvoltage, undervoltage, and overcurrent conditions. It's recommended to follow the device's fault detection and protection guidelines and to use external protection devices such as TVS diodes and fuses.
  • Recommended test and measurement procedures include using a precision voltage source and multimeter to verify the device's output voltage and current, as well as using an oscilloscope to measure the device's transient response and noise performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5424YRUZ-REEL7 Overview

Use the download button to access the AD5424YRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD542, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
